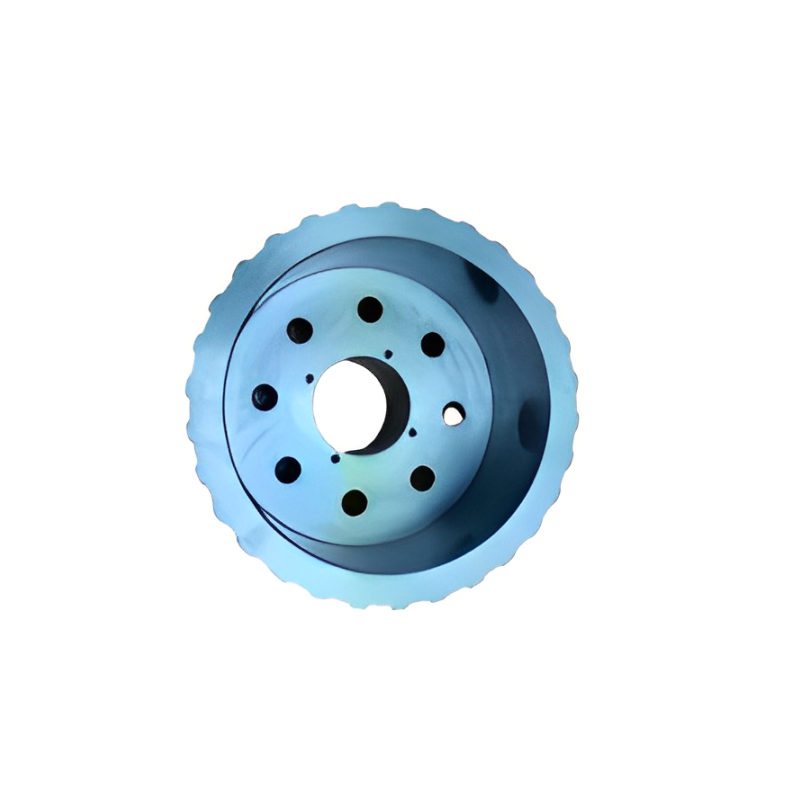

Outer Gear ±0.01 mm Precision for Hardened Steel Power Transmission Parts

Outer gears must maintain tight tolerances to ensure efficient power transfer, low noise, and stable rotation in machinery and automotive systems. HANEDA (Thailand) manufactures precision outer gears from hardened steels like SCM440 and SKD11 with ±0.01 mm tooth profile accuracy, ideal for high-load and high-performance applications.

■ High-Precision Outer Gears for Reliable Power Transmission
Outer gears used in automotive and machinery assemblies must meet strict dimensional and profile standards. Misalignment or uneven tooth finish can lead to vibration, wear, and transmission loss. HANEDA (Thailand) specializes in gear machining for hardened steel—offering tight profile control and complete inspection with CMM and microscopes.

■ Technical Features
・ Precision gear cutting for hardened steels (HRC58–62)
・ CNC hobbing with module range 0.5–3.0
・ Tooth profile tolerance: ±0.01 mm
・ CMM & tool microscope inspections with report
・ Reverse engineering: from drawing, 3D CAD, or sample

■ Supported Specifications
・ Spur gears (external type)
・ Shaft integration: center hole, D-cut, keyway supported
・ Partial and angled tooth profiles possible
・ One-piece gear-shaft structures also available

■ Dimension Range
・ Outer diameter: up to Ø150 mm
・ Tooth width: 5–50 mm
・ Surface roughness: Ra ≤ 0.8
・ Materials: SCM440, SKD11, S45C, etc.
・ Standards: DIN / JIS compliant

■ Manufacturing Workflow
1. Drawing / 3D / Sample submission
2. Process design & quotation
3. Hobbing → Heat treatment → Grinding
4. Final inspection via CMM + microscope
5. Delivery with full inspection report (JP/EN/TH)

■ Target Industries
・ Automotive: reduction gears, shaft-mounted gears
・ Machine components: drive and transmission systems
・ Automation: servo gear units, linear transfer systems

■ Why Choose HANEDA (Thailand)?
・ Consistent ±0.01 mm precision in gear production
・ Full in-house manufacturing under Japanese QC
・ Reverse engineering service available (no drawing required)
・ Material/process advice tailored to each use case

■　For more details, please download the PDF or feel free to contact us.
