TOP NISSEI USHIYAMA (THAILAND) CO., LTD. Technology/Service List Food-Grade Transparent Silicone Tube ｜ High Heat Resistance from -60℃ to +200℃
  • Food-Grade Transparent Silicone Tube ｜ High Heat Resistance from -60℃ to +200℃

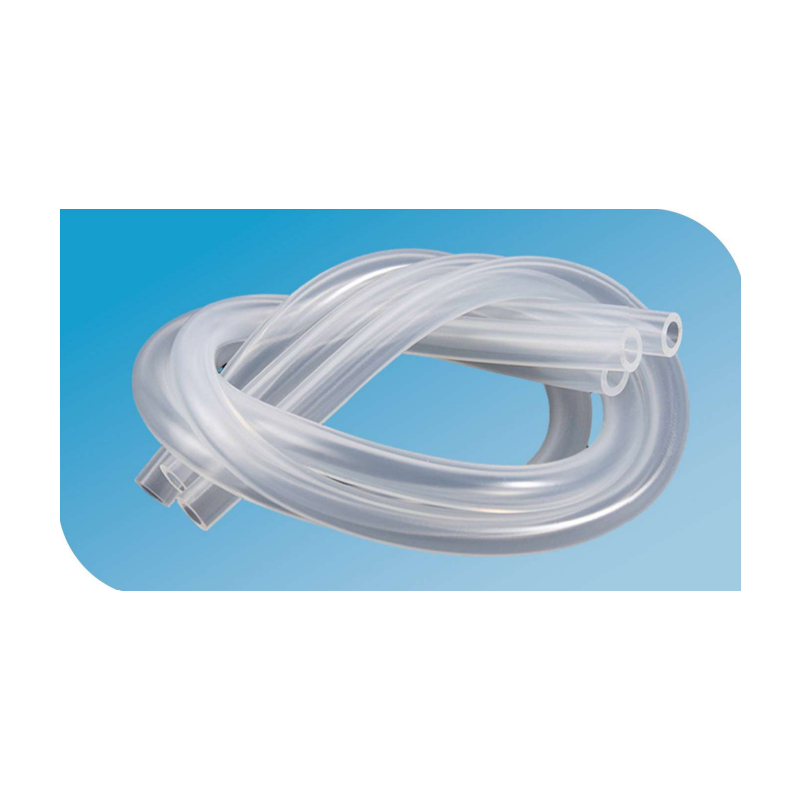

Food-Grade Transparent Silicone Tube ｜ High Heat Resistance from -60℃ to +200℃

This food-grade transparent silicone tube offers outstanding flexibility, heat resistance, and electrical insulation. Certified for FDA, NSF, and Japan Food Sanitation Law compliance, it is ideal for food processing, medical devices, laboratories, and high-temperature fluid handling.

■ Key Specifications
・ Material: Food-grade silicone rubber
・ Operating Temperature: -60℃ to +200℃
・ Hardness: Shore A 50
・ Tensile Strength: 5.0 MPa
・ Elongation at Break: 150%
・ Dielectric Strength: 14.5 kV/mm
・ Dielectric Constant: 2.2 at 50Hz
・ Flame Resistance: VW-1 compliant (UL-224)
・ Certifications: FDA CFR 177.199 / NSF / Japan Food Sanitation Law

■ Features and Benefits
・ Global Safety Compliance: FDA, NSF, and Japanese standards certified
・ High Transparency: Easy visual monitoring of fluid flow
・ Extreme Flexibility: Suitable for tight bends and compact spaces
・ Weather-Resistant: Resistant to UV, ozone, and outdoor exposure
・ Custom Sizing: Inner diameters from 0.8mm and various wall thicknesses available

■ Applications in Industry
・ Food & Beverage Production: Tubing for liquid transfer and filler machines
・ Medical and Lab Equipment: Chemical delivery and clean fluid systems
・ Filling Machines / Automation Lines: Flexible and sanitary tubing
・ Electronics Manufacturing: Safe insulation and sleeving for wires
・ R\&D and Testing Labs: Withstands extreme thermal environments

■ Why Choose This Silicone Tube
・ Certified for Global Food & Medical Standards
・ Superior Elasticity: Easy to handle and install in confined systems
・ Durable Performance Across Temperature Extremes
・ Fast Delivery: Available in rolls or custom-cut lengths

■ Technical Highlights
・ Volume Resistivity: 2×10¹⁴ Ω·cm
・ Breakdown Voltage: 14.5 kV/mm
・ Standard Wall Thickness: 1.0mm / 1.2mm / 1.5mm
・ Available Sizes: Inner diameters from 0.8mm to 20mm+

■ Installation Guidelines
・ Choose size based on pressure, fluid, and operating temperature
・ For electrical insulation, use 1.5mm wall thickness
・ For regulated industries, request certification documentation

■ For further details, please contact us or download the catalog via the link below.
