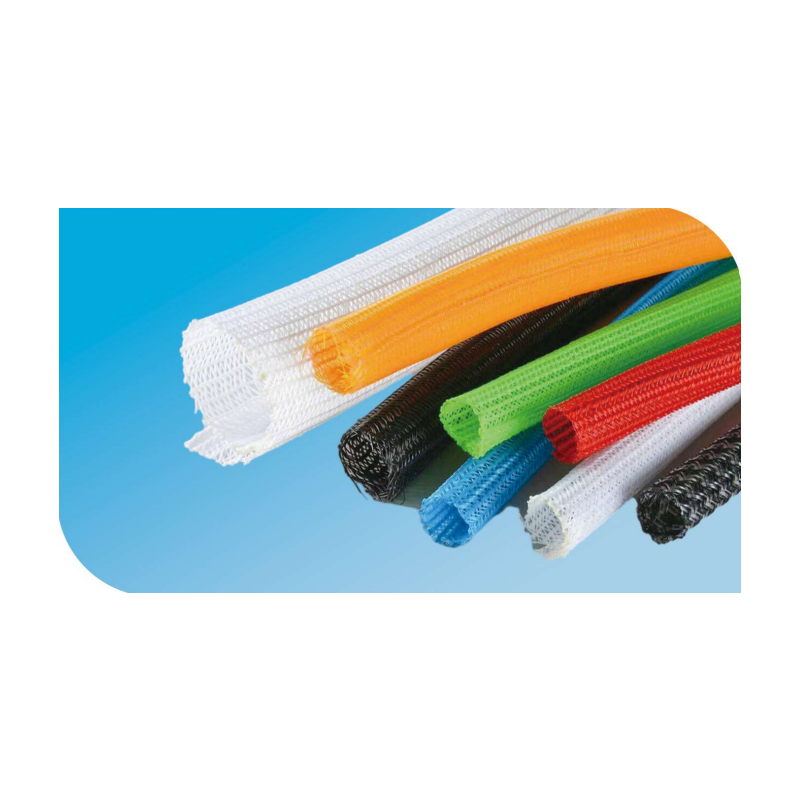

QX Series Self-Winding Textile Sleeve ｜ Heat-Resistant Cable Protection Without Cable Ties

The QX Series Self-Winding Textile Sleeve is a PET polyester cable wrap that improves wiring efficiency and safety. Its tool-free, self-wrapping design simplifies cable installation and replacement in control panels, FA systems, automotive equipment, and more.

■ Key Specifications
・ Material: Polyester (PET) monofilament
・ Temperature Range: -50℃ to +150℃
・ Structure: WW-1 self-wrapping slit design
・ Compliance: RoHS / SGS certified
・ Standard Colors: Black, white, blue, green, orange (customizable)
・ Inner Diameter Range: 5mm to 50mm (11 model options)

■ Features and Benefits
・ Tool-Free Installation: No need for cable ties or clamps—just wrap by hand
・ Maintenance-Friendly: Easily unwrap for cable inspection or replacement
・ Heat & Abrasion Resistance: Suitable for harsh industrial environments
・ Supports Cable Branching: Maintains tidy layout with functional flexibility
・ Economical Packaging: Supplied in rolls up to 100 meters

■ Applications in Industry
・ Electrical Control Panels: Cable bundling and insulation inside enclosures
・ Automotive Harnesses: Durable protection with color-coded organization
・ Factory Automation Systems: Protects moving cables from impact and wear
・ Telecom & Networking: Simplifies structured cable management
・ Medical Devices & Precision Tools: Lightweight sleeve with anti-static properties

■ Why Choose QX Series for Cable Management
・ Boosts on-site efficiency with fast manual application
・ Enhances system durability by reducing wire abrasion
・ Offers diverse color and size options for visual management
・ Ensures reliable sourcing from a long-term manufacturing partner in China

■ Technical Notes
・ Max Bundle Diameter: 6mm to 52mm (model-specific)
・ Installation Method: Manual; heat-sealing ends recommended
・ Chemical Resistance: Withstands weak acids, oils, and some solvents
・ Flame Resistance: VW-1 (UL Standard Compliant)

■ Installation Tips
・ Choose a sleeve 1–2mm smaller than the cable bundle for best fit
・ When bundling multiple cables, confirm total diameter fits model range
・ Always wrap in the correct direction to ensure optimal tension

■　For further details, please contact us or download the catalog via the link below.
