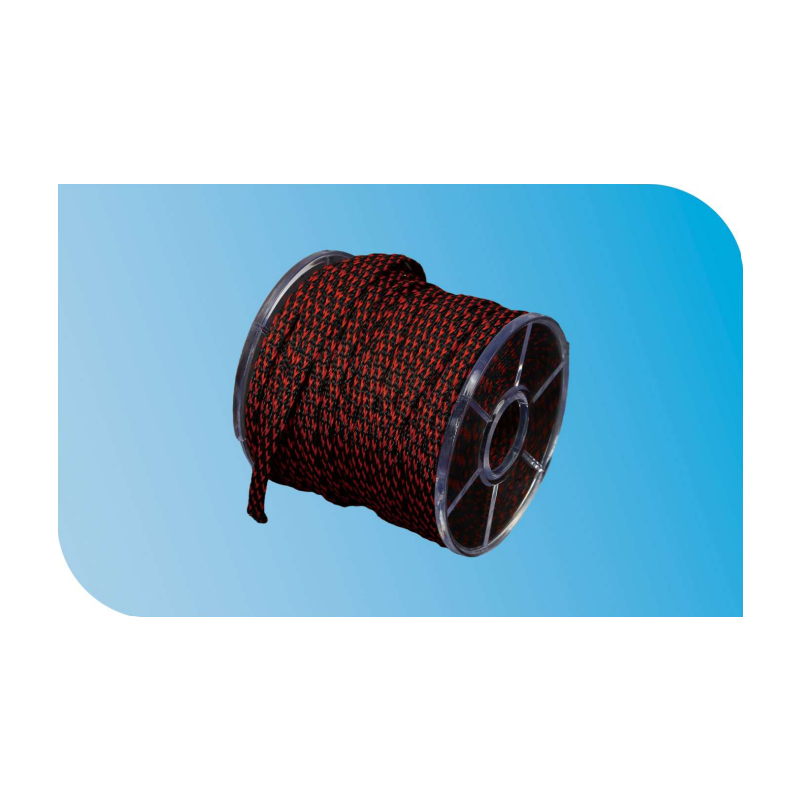

• Nylon Braided Sleeve NMS High-Temperature Resistant| Heat & Abrasion Protection for Cables

Nylon Braided Sleeve NMS High-Temperature Resistant| Heat & Abrasion Protection for Cables

NMS Nylon Braided Sleeve made from PA66 offers outstanding protection against heat, abrasion, and vibration—ideal for automotive, machinery, and control panel applications.

■ Key Specifications
・Material: Nylon (PA66) monofilament
・Operating Temperature: -60℃ to +160℃
・Flame Resistance: Self-extinguishing
・Expansion Rate: Approx. 1.5–2.5x (model-dependent)
・Size Range: Inner diameters 2mm–32mm (20+ variations)
・Standard Color: Black with red (custom colors available)

■ Features & Differentiation
・Excellent abrasion, impact, chemical, and heat resistance
・High flexibility—easy to cut and install
・Self-extinguishing nylon improves safety
・Environmentally friendly: RoHS-compliant, halogen-free
・In-stock items enable fast delivery (conditions apply)

■ Applications Across Industries
・Automotive: Heat and abrasion protection for wire harnesses
・Machinery: Reliable cable management in control systems
・Robotics: Flexible protection for moving cables
・Control Panels: Neat, insulated cable routing
・Telecom/Medical/Aerospace: Precision cable shielding in sensitive equipment

■ Why Choose the NMS Nylon Braided Sleeve
・Durable, long-lasting PA66 construction
・Custom size/color options available
・Trusted across multiple industrial sectors
・Flexible packaging (100–1000m rolls) for varied needs

■ Technical Performance
・Cross-woven nylon monofilament structure
・Dielectric Strength: Approx. 1000V+
・Shrinkage Tolerance: ±25%
・Chemical Resistance: Withstands mild acids, alkalis, and oils

■ Installation Tips
・Select size based on heat levels and cable movement
・Easily cut with scissors or cutters (heat sealing advised to avoid fraying)
・Match sleeve size to cable twist/bend frequency

■ For further details, please contact us or download the catalog via the link below.
