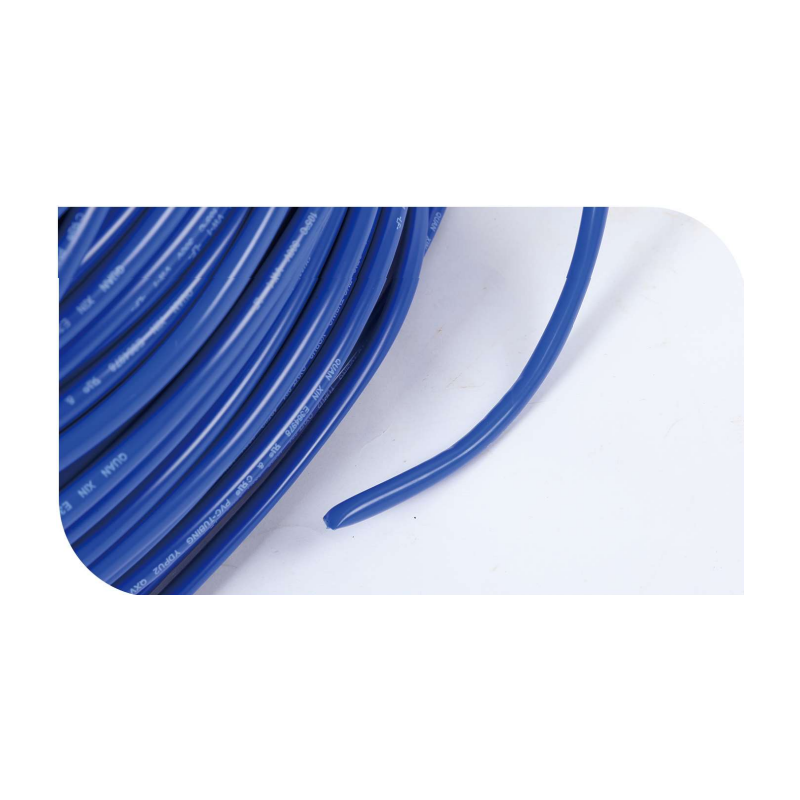

High-Temperature PVC Tubing QX‑PVC 300/600 (105°C) ｜ Non-Shrink Insulation for Hot Zones

QX‑PVC TUBE 300/600 (105°C) is a non-shrink PVC tubing built for high-heat industrial wiring. Rated for 105°C and up to 600V, it protects wires in engine compartments, control panels, and dense circuits—without requiring heat for installation.

■ Non-shrink PVC tubing for high-temperature wiring
QX‑PVC TUBE 300/600 (105°C) is specially engineered to insulate and protect electrical wiring in environments where temperatures reach up to 105°C. The non-shrink design improves worksite safety and speed by eliminating the need for heat during installation. Ideal for automotive systems, industrial machinery, and electronics, this tubing ensures electrical safety and mechanical durability under thermal stress.

■ Key Specifications and Performance
・ Material: High-temperature PVC (non-shrink type)
・ Operating Temperature: -20°C to 105°C
・ Rated Voltage: 300V / 600V
・ Outer Diameter Range: 2.0mm – 17.0mm (20 standard sizes)
・ Flame Retardancy: UL VW-1 compliant
・ Dielectric Strength: ≥2500V (60 seconds)
・ Tensile Strength: ≥10.4MPa (≥1.5kgf/mm²)
・ Elongation: ≥100%
・ Volume Resistivity (after aging): ≥10⁴Ω·cm
・ Heat Aging Test: (136.0±1.0)°C for 168 hours

■ Features and Differentiators
・ 105°C temperature rating: Ideal for high-heat areas like automotive engine bays
・ No heat required: Non-shrink design simplifies installation and reduces risk
・ Durable insulation: Maintains dielectric strength and elongation under heat
・ Wide size options: Inner diameter from 1.0mm to 15.6mm supports multiple applications

■ Applicable Industries and Use Cases
QX‑PVC 105°C is recommended for:
・ High-temp control panel wiring
・ Automotive wiring near engine heat zones
・ Chargers and high-output power supply insulation
・ Medical and industrial equipment with thermal load
・ Circuit boards and electronic devices in dense, enclosed setups

This tubing delivers safe, reliable wire protection where heat resistance is critical.

■ Why Choose QX‑PVC TUBE 300/600 (105°C)
・ Withstands high temperatures up to 105°C
・ Non-shrink design eliminates heating steps and improves safety
・ Compliant with UL VW-1 and dielectric strength standards
・ Available from local stock in Thailand (check availability for delivery timelines)

■ For more details, please contact us or download the product catalog using the link below.
