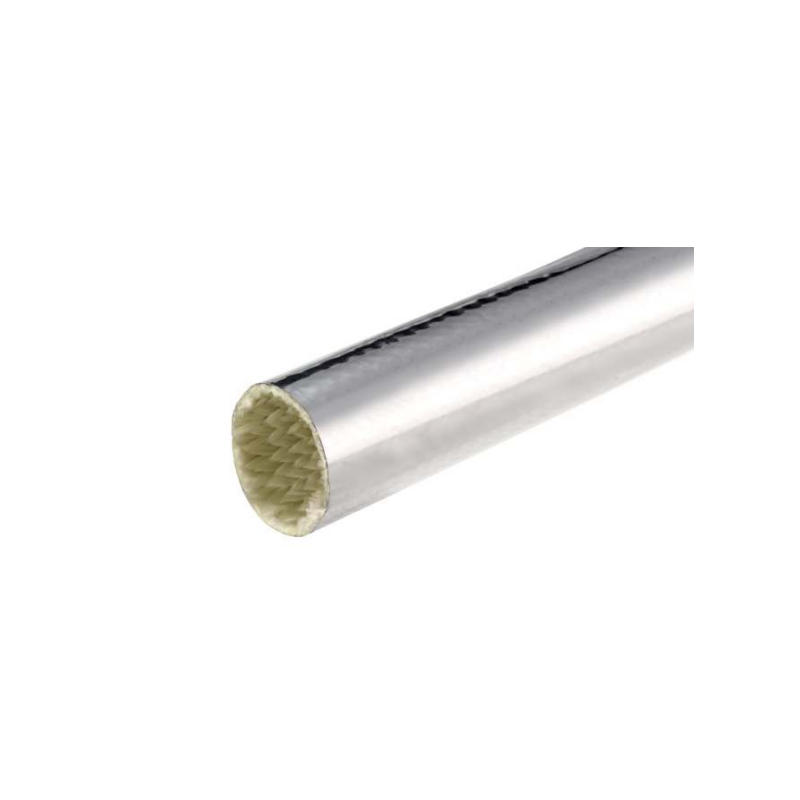

Aluminum Heat Reflect Fiberglass Sleeving (JDD-AFR7610) ｜ High-Temperature Protection for Wiring & Hoses

JDD-AFR7610 sleeving combines aluminum foil and fiberglass to offer flexible, high-temperature insulation up to 200°C. It reflects over 95% of infrared heat, protecting cables, hoses, and pipes in automotive, aerospace, and factory applications.

■ Features:
・ Dual-Layer Structure for Heat Protection
Outer aluminum foil and inner fiberglass deliver excellent thermal insulation and resistance up to 200°C.
・ Superior Infrared Heat Reflection
Reflects over 95% of radiant heat—preventing premature cable or hose degradation in hot environments.
・ Flexible and Workable
Easy to install even in tight or curved areas; can be cut and processed on-site with minimal tools.
・ Eco-Friendly & Compliant
RoHS-compliant material for responsible, regulation-ready use.

■ Specifications:
・ Inner Layer: Fiberglass
・ Outer Layer: Aluminum foil
・ Temperature Range: -40°C to +200°C
・ Color: Silver (outside) + White (inside)
・ Wall Thickness: 0.8mm
・ Size Range: Inner diameter from 7mm to 34mm (flat width 16–57mm)
・ Packaging: 50m or 100m per roll (depending on size)

■ Applications:
・ Automotive: Protects engine compartment wiring and hoses from thermal stress.
・ Factory Equipment: Shields generator and industrial wiring in hot zones.
・ Aerospace & Heavy Machinery: Thermal barrier for high-impact environments.
・ Semiconductor Manufacturing: Protects sensitive cabling in high-temp cleanroom conditions.
・ Piping Systems: Wraps around hot pipes for added insulation and safety.

The JDD-AFR7610 sleeving is essential for maintaining performance and extending lifespan in high-temperature environments—ensuring reliability and safety across industries.

■ For more information, please download the PDF or contact us directly.
