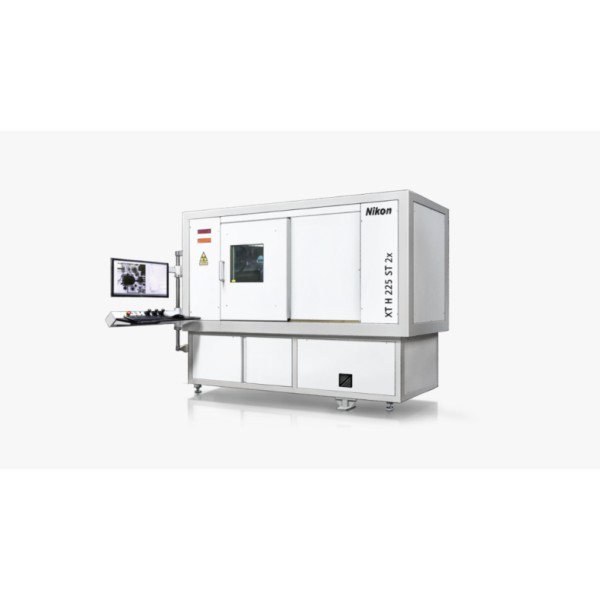

XT H Series: X-ray CT Technology Supporting Research and Production

The XT H series is a high-performance inspection system that integrates Nikon's acclaimed industrial X-ray CT technology. Utilized in diverse fields such as aerospace, automotive, medical devices, and materials research, it enables detailed non-destructive analysis of the internal structures of parts and materials. This significantly streamlines processes such as defect detection, quality control, dimensional measurement, and design verification. NIKON SALES (THAILAND) CO., LTD. is based in Thailand and supports local businesses by leveraging the specialized technology of the Nikon Group.
■ Features
・High-Precision Scanning
Achieves sub-micron level resolution with energy settings up to 225 kV, enabling accurate analysis of internal structures.
・Flexible Target Configuration
A variety of settings are available to suit different applications, from 180 kV transmission targets to 225 kV rotating targets.
・Low Operating Cost
The open tube design facilitates easy component replacement, reducing running costs.
・Intuitive Operability
With proprietary Inspect-X software, both beginners and experts can operate it easily and efficiently.
・Wide Range of Applications
Supports a wide range of applications, including inspection of plastic parts, small castings, complex mechanisms, and research of natural specimens.
■ Specifications
・Energy Setting: Max 225 kV, 450 W (varies by model)
・Maximum Scan Size: 280 mm diameter
・Maximum Weight Capacity: Max 50 kg at the center
・Resolution: Sub-micron level high-resolution scanning
■ Applications
・Aerospace: Analysis of turbine blades, welds
・Automotive Industry: Inspection of electrical connectors, injection nozzles, sensors
・Medical and Pharmaceutical: Analysis of medical devices, small plastic parts, bone structures
・Research and Development: Material property evaluation, paleontology, geological research
The XT H series addresses complex inspection needs in research institutions and manufacturing, enabling efficient and high-precision non-destructive inspection.
For more details, please download the PDF or feel free to contact us.
