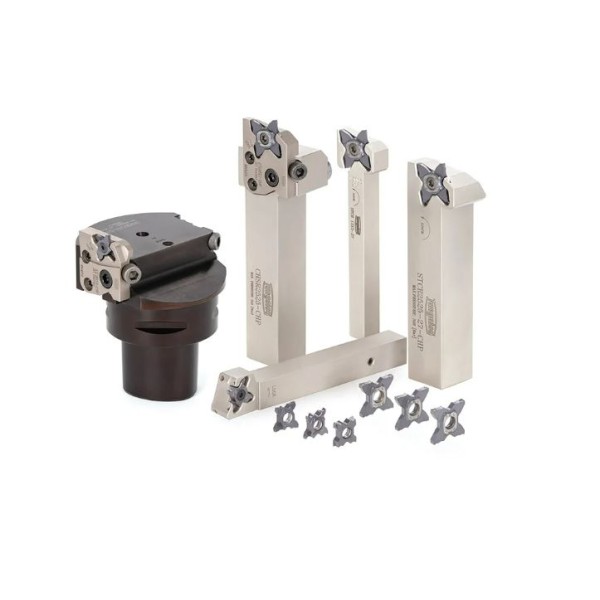

TetraForce-Cut High-Precision and High-Rigidity 4-Corner System
TetraForce-Cut is a high-precision, high-rigidity turning tool with a 4-corner insert design. Its unique 3-point clamping system ensures exceptional edge position accuracy and robust clamping, supporting grooving, parting, and threading operations. High-pressure coolant-compatible holders are also available to meet diverse machining needs.
■ Product Information
TetraForce-Cut is provided by Tungaloy and offers high-precision ground inserts with a 4-corner design. The system achieves stable machining performance through its advanced clamping mechanism and supports both right- and left-hand configurations for improved economy.
■ Features
- High-precision ground inserts
The 4-corner ground inserts are ideal for precision machining. The same insert can be used for both right-hand and left-hand operations, ensuring cost-effectiveness.
- *-point clamping system
The 3-point clamping securely positions the insert, enhancing edge position repeatability and ensuring stable machining. The design also protects unused corners from chip contact during machining.
- High-pressure coolant compatibility
CHP-type holders deliver high-pressure coolant directly to the cutting point, optimizing cooling and chip evacuation while extending tool life.
■ Product Information
- No. 416-J (General).
- No. 416S1-J (TCL18, TCG18).
- No. 416S2-J (TCF18).
- No. 416S3-J (TCL38).
- No. 416S4-J (TCS18-LH, TCL18-LH).
■ Specifications
- Insert shapes:
- TC*27 type: Usable for both right- and left-hand operations.
- TCP18 type: For small component machining with 60° threading capability.
- Compatible chipbreakers:
- Two types available to accommodate diverse machining conditions.
- Holder specifications:
- High-pressure coolant-compatible CHP-type holders are available.
■ Applications
- External grooving.
- Parting.
- External lateral feed.
- External threading.
TetraForce-Cut is an optimal solution for grooving and parting operations, achieving extended tool life, enhanced machining accuracy, and cost-effectiveness simultaneously.
■ For more details, download the PDF or feel free to contact us.
