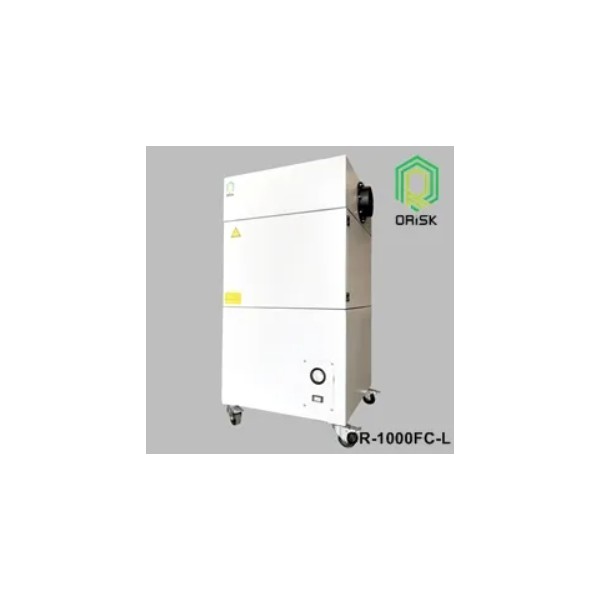

OR-1000FC-L: A High-Performance Fume Removal System for Non-Metallic Materials

The OR-1000FC-L is a filtration device designed to effectively remove smoke and fumes generated during the processing of non-metallic materials such as MDF, plywood, acrylic, and rubber. It delivers excellent performance in both metal and non-metal processing environments.
■ Features
Wide Material Compatibility: Ideal for processing non-metallic materials such as MDF, plastic wood, acrylic, and rubber.
High Suction Performance: Effectively removes smoke and fumes with a powerful 1,000m³/h suction capacity.
Low Noise Operation: Operates at ≤70dB to ensure a comfortable working environment.
Easy Installation: Compact design fits cutting tables and tight workspaces.
Energy-Efficient Design: Delivers high efficiency with a low power consumption of 1.1KW.
■ Specifications
Model: OR-1000FC-L
Application: Smoke and fume removal from cutting tables
Compatible Materials: Metals, MDF, plastic wood, acrylic, rubber, and more
Power Consumption: 1.1KW
Voltage/Frequency: 220V / 50Hz
Suction Power: 1,000m³/h
Noise Level: ≤70dB
Dimensions: 710×760×1350mm
Weight: 138-140kg
■ Applications
Smoke removal during the processing of MDF, plastic wood, acrylic, and rubber
General non-metallic material processing
Smoke and fume removal from both metallic and non-metallic cutting tables
■ About THERMAL MECHANICS CO., LTD.
Headquartered in Samut Prakan, Thailand, with branches in Rayong and Nakhon Ratchasima, we provide prompt and reliable services across Thailand. Our mission is to enhance safety and efficiency at your worksite.
For more details, please download the PDF or feel free to contact us.
