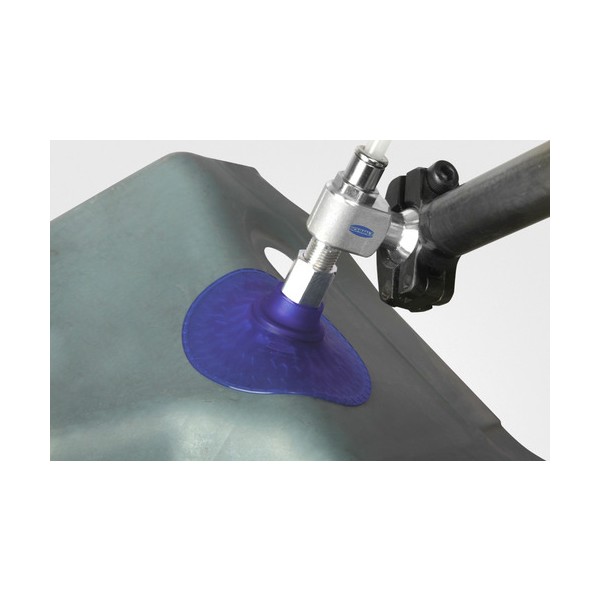

SAXM Series: High-Performance Vacuum Cups for Thin Steel Sheets with Oil Film
Revolutionize the handling of thin steel sheets with oil film with the SAXM series. Durable and flexible vacuum cups securely suction workpieces of any shape.
The SAXM series from SCHMALZ is a vacuum cup designed specifically for thin steel sheets coated with an oil film. Made of Elastodur, which offers approximately three times the wear resistance and ozone resistance compared to nitrile rubber, it ensures a long lifespan. Its soft, bell-shaped design with a large stroke is also suitable for suctioning workpieces with curved surfaces like wheels. Additionally, the suction surface grooves allow oil to escape, making it ideal for the high-speed transport of thin steel sheets with an oil film. Equipped with a brake foot, it prevents the intake or deformation of thin workpieces during suction. With a wide range of sizes from Φ30mm to Φ115mm, it can accommodate various applications.
■ Features
Made of High-Durability Elastodur: Offers about three times the wear and ozone resistance of nitrile rubber, designed for long-term use.
Bell-Shaped Design with Large Stroke: The soft material and bell shape provide excellent suction performance even on workpieces with curved surfaces.
Suction Surface with Oil-Escape Grooves: Effectively releases oil, maintaining stable suction during the high-speed transport of thin steel sheets with an oil film.
Equipped with Brake Foot: Supports suction effect by preventing the intake or deformation of thin workpieces.
Wide Range of Sizes: Available in sizes from Φ30mm to Φ115mm, meeting diverse transport needs.
The SAXM series delivers high performance and stability for the transport of a wide variety of workpieces, including thin steel sheets with an oil film. These vacuum cups, which combine durability and flexibility, contribute to the efficiency and quality improvement of production lines.
For more information, please download the PDF or feel free to contact us.
