NP FAMOUS CO., LTD.

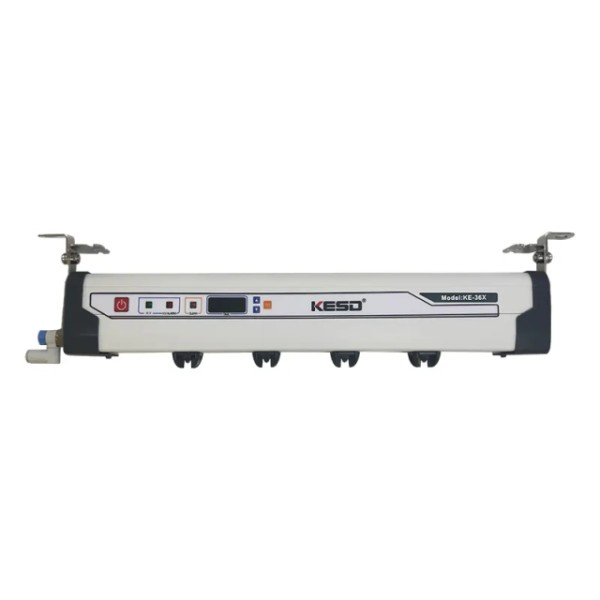

KESD KE-36X High-Frequency Ionizing Air Bar｜ESD Solution for Electronics

KESD KE-36X is a high-frequency AC ionizing air bar with ±20V ion balance and fast discharge performance. Distributed in Thailand by NP FAMOUS CO., LTD., ideal for ESD-sensitive production lines.
The KE-36X by KESD is a high-frequency AC ionizing air bar operating at 68 kHz, designed for fast and precise static elimination. As an official distributor, NP FAMOUS CO., LTD. provides consultation and delivery of this model to manufacturers of PCBs, LCDs, silicon wafers, and ESD-controlled environments. Ideal for cleanroom and automated line installations.
■ Key Features
- High-frequency 68 kHz AC discharge for rapid static elimination
- ±20V auto ion balance control system
- High-voltage fault alarm via LED indicator
- Clean timer up to 999 hours for preventive maintenance
- Side-wiring design for easy integration into equipment
- Airflow adjustable via control valve
■ Technical Specifications (KE-36X)
- Input: DC 24V
- Discharge method: High-frequency AC ±2200V
- Discharge time: 0.5–0.6 s (at 300 mm)
- Ion balance: ±20V
- Ozone concentration: < 0.035 ppm (at 50 mm)
- Operating temperature: 0–40 °C / Humidity: 15–70%RH
- Air pressure: 0.1–0.5 MPa
- Power: ≤ 5.8 W
- Product length: 413 mm
- Electrode spacing: 180 mm
■ Typical Applications
- Static elimination before coating electrodes
- Before LCD bonding
- During PCB transfer
- Before scroll component installation
- Before wire twining
- Feeders / Loaders
- Silicon wafer inspection
- Before plate layering
■ Suitable Industries
- Electronics and semiconductor manufacturing
- Automotive parts assembly
- Cleanroom and precision device assembly
- LCD and optical component lines
- Factories with ESD control requirements
KE-36X offers precise, fast, and reliable static elimination—ideal for cleanroom and automated production lines.
■ Please download the PDF for full specifications or contact NP FAMOUS CO., LTD. for further information.
