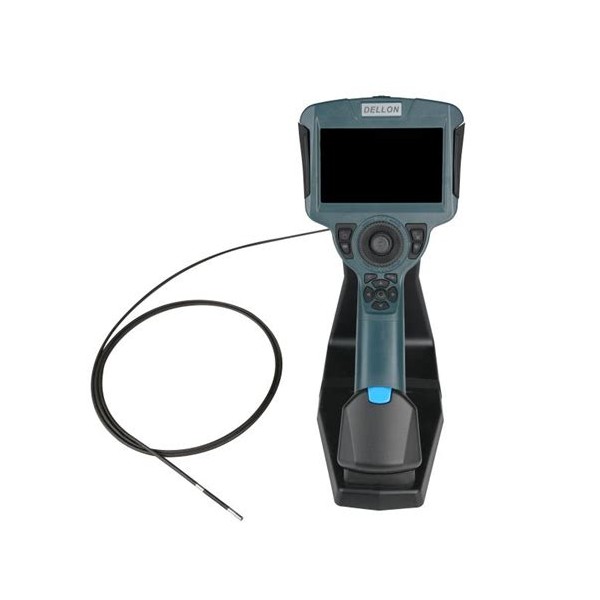

VX Industrial Videoscope High-Precision Multi-Function Internal Inspection Tool

VX Industrial Videoscope offers high-resolution dual-view inspection and 4-way tip articulation, perfect for internal inspections in tight or complex areas.
The VX is a rugged industrial videoscope designed for Remote Visual Inspection (RVI) of machinery and components. With a high-resolution CMOS sensor and tungsten-braided probe, it enables clear internal observation in confined spaces with fast, real-time feedback.
■ Features
- 5-inch Full HD touchscreen with 10x zoom and image enhancement
- Interchangeable probes (2.0mm to 3.9mm) with 4-way articulation and dual-view (0° & 90°)
- Powerful white LED lighting: 6,000 lux (front), 3,000 lux (side)
- IP64-rated durability for industrial environments
■ Specifications
- Probe Diameter: 2.0mm / 2.8mm / 3.9mm
- Tip Articulation: 4 directions, up to 170°±10°
- Field of View: over 120°
- Depth of Field: 5mm – 50mm
- Image Resolution: 700x700 pixels
- Display: 5” touchscreen, 1920x1080 pixels
- Output Ports: SD, HDMI, USB Type-C, mini USB, 3.5mm headphone jack
- Operating Temperature: -20°C to +50°C
■ Applications
- Internal inspection of engines, turbines, and heat exchangers
- Corrosion and crack detection inside pipes and tanks
- Public safety inspections: EOD and rescue operations
- Aerospace, automotive, and energy equipment inspection
■ Applicable Industries
- Aerospace industry
- Power generation
- Automotive manufacturing
- Chemical and petroleum plants
- Safety and rescue authorities
VX is the ideal tool for professionals who demand precise internal inspections in challenging environments.
Please download the PDF or contact us for more details.
