What Is a Thread Gauge?｜Types, Uses, and How to Select the Right One for Industrial Threads

A Thread Gauge is a key tool used in quality control to check the accuracy of internal and external threads in industrial components. This article explains the main types of thread gauges, how to use them correctly, and what to consider when selecting the right gauge for your specific application.
In industries like automotive, electronics, and machinery manufacturing, threaded components are essential for secure assembly. Ensuring that threads meet standards is critical for maintaining structural integrity and safety.
A Thread Gauge measures thread dimensions such as size, pitch, and angle, ensuring conformity to international standards. These tools are used on both male threads (external) and female threads (internal).

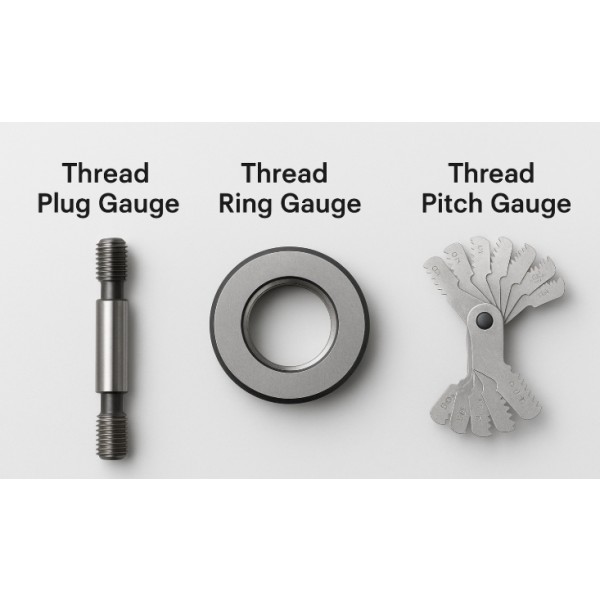

Types of Thread Gauges
1. Thread Plug Gauge (Internal Thread Inspection)
・ Verifies the accuracy of threaded holes (e.g., nuts or tapped parts)
・ Features two ends: “GO” must fit, “NO-GO” must not
・ Confirms conformity with standard dimensions
2. Thread Ring Gauge (External Thread Inspection)
・ Used to inspect external threads on screws, bolts, or shafts
・ “GO” should thread smoothly, “NO-GO” should not fit
・ Prevents issues like loose threads and poor mating
3. Thread Pitch Gauge (Thread Identification)
・ Measures the thread pitch (e.g., 1.0 mm, 1.25 mm)
・ Used to identify thread types—not for pass/fail checking
・ Useful before using Plug or Ring Gauges
Thread Standards to Know Before Buying a Gauge
・ Metric (ISO) – e.g., M6x1.0, M10x1.5 (widely used in Thailand)
・ UNC/UNF – Common in U.S. mechanical applications
・ BSP / NPT – Used in piping, hydraulic, and pneumatic systems
Each standard has unique pitch, angle, and dimensional features—so matching the right gauge is essential to avoid errors.
Best Practices When Using Thread Gauges
・ Always inspect with both GO and NO-GO sides
・ Avoid forcing the gauge to prevent damage
・ Clean the part before testing to ensure accuracy
・ Calibrate your gauges periodically to maintain precision
Recommended Product: Premium Thread Gauges from Haneda Thailand
✅ Thread Plug Gauge (GO / NO-GO)
・ Available in sizes M2 to M24
・ Manufactured from hardened steel for durability
・ Certified to JIS/ISO standards with calibration documents
Haneda Thailand is a trusted supplier of industrial measurement tools for factories across Thailand—supporting quality assurance in both production lines and calibration labs.
