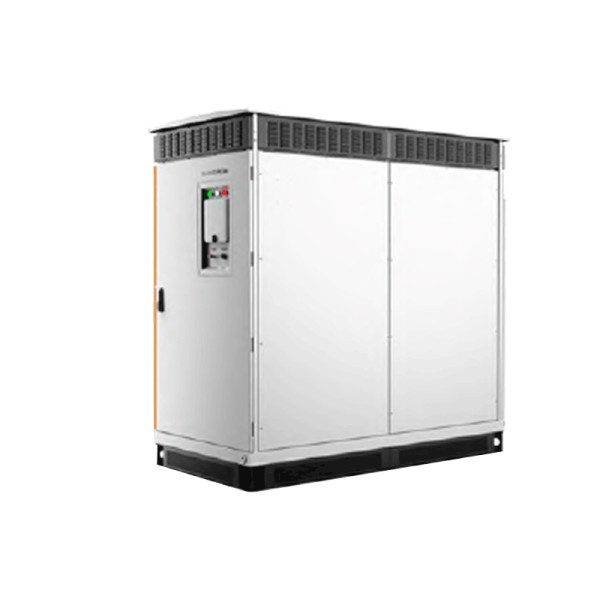

SG3400HV-30 Outdoor Photovoltaic Inverter (1500 Vdc System Compatible)

Pi Enterprises (Thailand) Co., Ltd. introduces SUNGROW POWER SUPPLY CO., LTD.'s high-performance solar inverter "SG3400HV-30". Designed specifically for 1500 Vdc systems and equipped with cutting-edge technology, it maximizes energy conversion efficiency and reduces system costs. Its design withstands harsh environments, offering users optimal cost performance.
■ Features
1. High Yield Power Generation (High Yield)
- Three-level technology improves inverter efficiency up to 99%.
- Equipped with a high-efficiency cooling system, enabling full operation even in high-temperature environments of 50°C.
2. Smart Operation & Maintenance (Smart O&M)
- Real-time current and voltage monitoring enables online diagnosis and troubleshooting.
- Modular design facilitates easy maintenance.
- Equipped with an external touchscreen display to improve operability.
3. Reduced Investment Cost (Saved Investment)
- Outdoor installation-compatible design reduces transportation and installation costs.
- Compatible with 1500 V DC systems, reducing overall system costs.
- Optional "Q at night" function stabilizes the power grid at night.
4. Grid Compatibility (Grid Support)
- Complies with international standards IEC 61727 and IEC 62116.
- Equipped with Low/High Voltage Ride-Through (L/HVRT) function to prevent system shutdown during voltage fluctuations.
- Features active and reactive power control functions, as well as power output ramp rate control, to ensure stable power supply.
■ Specifications
- Max. PV Input Voltage: 1500 V
- MPP Voltage Range: 875 – 1300 V
- AC Output Power: 3437 kVA @ 45°C
- Protection Degree: IP55 (upgradable to IP65)
- Operating Temperature Range: -35°C to 60°C
- Cooling System: Forced air cooling with temperature control
■ Why choose Pi Enterprises (Thailand)'s SG3400HV-30?
As a specialized distributor of solar power generation equipment, Pi Enterprises (Thailand) Co., Ltd. provides consulting, system design, and high-quality products. We offer optimal solutions tailored to customer needs and maximize the efficiency of solar power projects with reliable products.
