UEDA MACHINE TOOLS (THAILAND) CO., LTD.

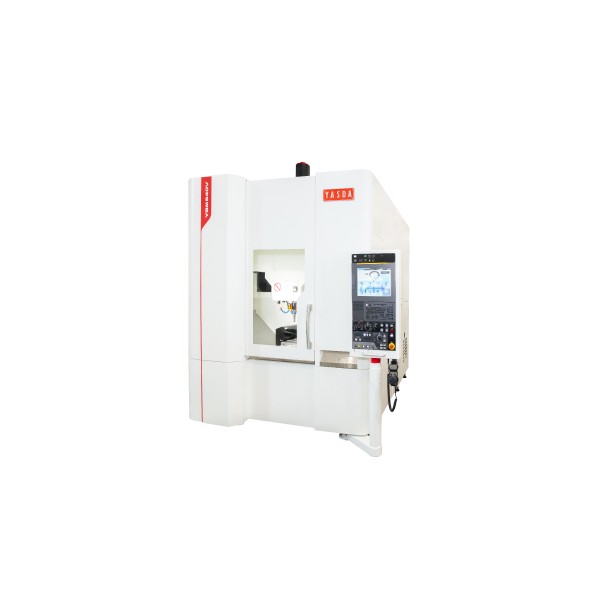

CNC Jig Borer YBM 640V Ver.Ⅴ: Improve Production Efficiency with Japanese Technology

CNC Jig Borer YBM 640V Ver.Ⅴ is a machine designed by YASDA PRECISION TOOLS K.K., which boasts high-precision machining technology, and imported and sold by UEDA MACHINE TOOLS (THAILAND) CO., LTD. The latter is a leading company providing industrial machinery solutions within Thailand.
■ Features
- High-Rigidity Structure: The machine body is designed to ensure stability and minimize vibration during operation.
- Thermal Stability Technology: Reduces the impact of temperature changes and maintains cutting precision.
- High-Speed Spindle: Supports 100 to 24,000 min⁻¹, with an optional upgrade to 30,000 min⁻¹ for higher speeds.
- FANUC 31i-B5 Plus Control System: An NC system that enables high-precision axis control.
- Expandable Options: Additional functions such as a 1-axis rotary table and automatic tool changer (ATC) system are selectable.
■ Specifications
- Travel (X/Y/Z): 600/400/350 mm
- Spindle Taper: MAS BT40 (Optional: HSK-A63, MAS BT30)
- Spindle Speed: 100 to 24,000 min⁻¹ (Optional: 150 to 30,000 min⁻¹)
- ATC (Automatic Tool Changer): 30 tools (Optional: 40/60/90/100 tools)
- Rotary Table (Optional): Diameter 200 mm, Load capacity 40 kg
- Machine Height: 3,100 mm
■ Applications
- Ideal for the mold and die industry and tool industry requiring high-precision drilling.
- Capable of machining parts that demand extremely tight tolerances, such as aerospace components and automotive parts.
- Maintains machining quality even during long hours of continuous operation.
- Can be integrated with automation systems, improving production efficiency through robotic workpiece transfer, etc.
If you are looking for a high-precision CNC Jig Borer, UEDA MACHINE TOOLS (THAILAND) CO., LTD. will support you.
