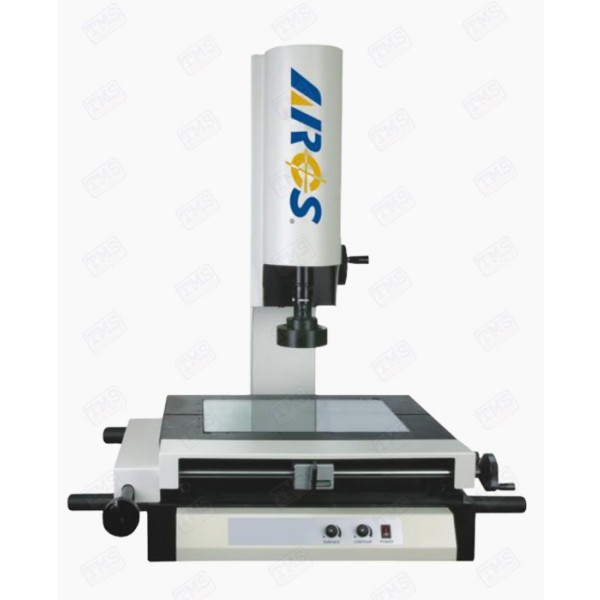

High-Precision Vertical Non-Contact Video Measuring Machine ARCS KIM-U Series

The ARCS KIM-U Series is a vertical non-contact video measuring machine, specifically designed for high-precision 2D measurements. It features Navitar step zoom lenses made in the USA and a high-resolution CCD camera from Japan, achieving a measurement accuracy of ±(3+L/200)μm and repeatability of 2μm. The adjustable surface and contour lighting system ensures versatility for various measurement needs.
■ Key Features
High-Resolution CCD Camera: Japanese-made camera delivers sharp and precise images.
Navitar Step Zoom Lenses: 0.7–4.5x zoom (17.5–112.5x magnification) with optional 0.5x and 2x objective lenses.
High-Precision Linear Scales: 0.5μm resolution on X, Y, and Z axes.
Adjustable Lighting System: Surface and contour lighting with optional high-intensity ring light.
Stable Structure: Granite base and aluminum work table ensure measurement stability.
■ Technical Specifications
Models: KIM-2010U, KIM-3020U, KIM-4530U
Measuring Range (X, Y, Z): 200×100×200mm, 300×200×200mm, 450×300×200mm
Stage Size: 355×255mm, 505×355mm, 705×505mm
Stage Load Capacity: 25kg
Dimensions (W×D×H): 563×592×870mm, 785×800×900mm, 1070×1090×770mm
Weight: 130kg, 185kg, 340kg
Software: Equipped with SI-101, offering comprehensive functions like dimension annotation, CAD drawing, tolerance setting, report generation, and 3D visualization.
The ARCS KIM-U Series is an ideal solution for quality control and precision inspections across various industries.
For more details, please download our PDF or contact us.
