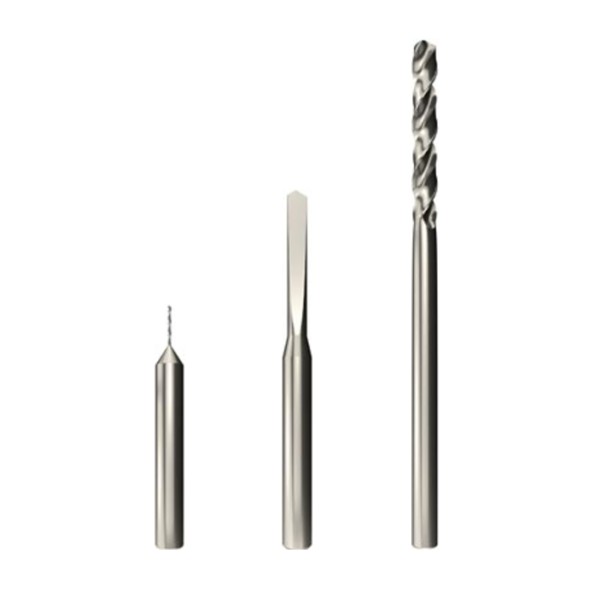

WhizDrill Micro Carbide Drills – Precision and Efficiency for Small-Diameter Machining

WhizCut introduces WhizDrill, high-quality custom-made carbide micro drills designed for micro machining applications. These drills support diameters ranging from 0.1mm to 3mm and can be tailored to specific geometries and coolant supply requirements. Minimum order starts from just 20 pieces, with available shank sizes including 1.00mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm, 1/8 inch, and 4.00mm.WhizCut offers fast services both domestically and internationally through WHIZCUT ASIA CO., LTD. in Thailand.
■ Key Features
Customizable Geometries: Drills can be tailored to meet specific machining requirements.
High-Quality Ultra-Fine Carbide: Made with carbide featuring hardness above 1570 HV 30 and corner strength exceeding 4000 MPA.
Diverse Coating Options: TiAlN and AlCrN coatings are available to match a variety of machining conditions.
Small Batch Production: Minimum orders of just 20 pieces enable cost-efficient manufacturing.
■ Specifications
Diameter Range: From 0.1mm to 3mm.
Shank Sizes: 1.00mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm, 1/8 inch, and 4.00mm.
Carbide Grades:
9M: Uncoated grade for ISO K20-K30 applications, with strength above 4000 MPA.
F9: TiAlN-coated grade for high-temperature machining up to 900°C.
B9: AlCrN-coated grade for high-temperature machining up to 1100°C, ideal for titanium.
■ Applications
WhizDrill is ideal for use in CNC Swiss-type machines like Star, Citizen, Tsugami, Gildemeister, and Tornos, offering precision micro machining capabilities.
WhizDrill is the ultimate solution for enhancing precision and efficiency in small-diameter machining, with high-quality materials and a variety of coating options to suit complex machining tasks.
