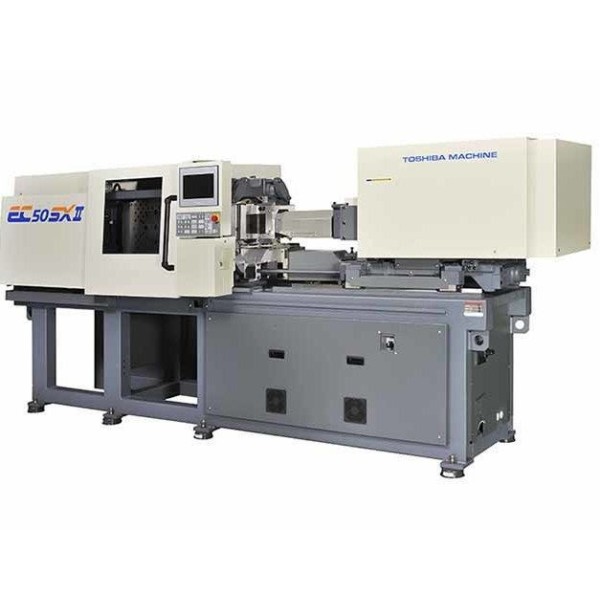

TOSHIBA EC-SXII Series Injection Molding Machine: High-Pressure Injection and High-Speed Molding

The EC-SXII Series combines high-speed performance with exceptional precision, streamlining complex molding processes while enhancing accuracy and productivity. Backed by the trusted TOSHIBA brand and supported across Thailand by J TECH Machinery Co., Ltd., this solution offers unparalleled reliability.
■ Features
High Injection Pressure: Capable of up to 278 MPa, accommodating complex molding requirements.
High-Speed Operation: Injection speeds up to 525 mm/s, improving production efficiency.
Precision Control: Advanced injection unit ensures consistent and accurate molding.
Energy Efficiency: All-electric system reduces power consumption and lowers operating costs.
Quiet Performance: Operates with minimal noise, ensuring a comfortable work environment.
■ Specifications
Injection Unit Code: i0.4 to i4.
Screw Diameter: 16 mm to 45 mm.
Injection Pressure: Up to 278 MPa.
Clamping Force: 294 kN (30 tons) to 980 kN (100 tons).
Mold Mounting Space: 320×290 mm to 460×410 mm.
Injection Speed: Up to 525 mm/s (standard) and 200 mm/s (under high load).
Plasticizing Capacity: Up to 120 kg/h (PS).
Dimensions: Length 2.9–4.9 m, Width 1.0–1.3 m, Height 1.6–1.7 m.
■ Applications
Automotive Components: Precision molding of connectors, clips, etc.
Medical Devices: High-precision molding of syringes, medical containers, and more.
Electronic Components: Molding of small parts like connectors and capacitor cases.
Industrial Plastic Parts: High-volume production of durable components.
The EC-SXII Series offers an ideal solution for manufacturers seeking enhanced precision, speed, and efficiency, supported by J TECH Machinery Co., Ltd. for reliable service throughout Thailand.
