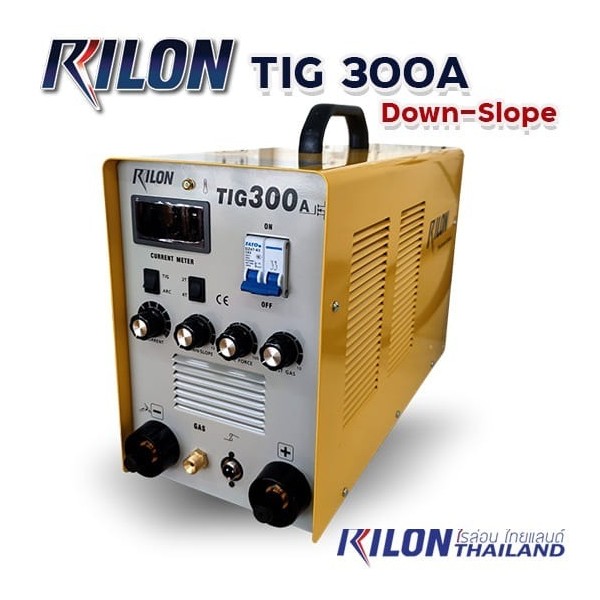

TIG welding machine Rilon TIG300A (Down-Slope)

Rilon TIG300A (Down-Slope)** is a 300-amp TIG welder utilizing a MOSFET system and operating on a 220-volt power supply. This welder can be used in two modes, TIG and MMA, and is particularly suitable for stainless steel welding. Equipped with 2T/4T (Auto) and Down-Slope functions, the arc termination time can be adjusted within a range of 0-5 seconds. With a stable welding current, continuous welding operations can be performed efficiently.
Key Features
・ Stable Current Supply: Provides stable current thanks to the MOSFET system.
・ Down-Slope Function: Arc termination time adjustable from 0-5 seconds.
・ Post Flow Adjustment: Gas flow after welding adjustable from 0-10 seconds.
・ Pulse Frequency Adjustment: Welding frequency adjustable from 0-5Hz.
・ Two Welding Modes (TIG/MMA): Supports both TIG and MMA welding.
・ High Efficiency: Operates at 60% 250A, 100% 180A for TIG, and 60% 210A, 100% 150A for ARC.
Product Specifications
・ Input Voltage: AC 220V ±15% / 50-60Hz
・ Welding Current:
TIG: 10-250A / 20V
ARC: 10-210A / 28.4V
・ Dimensions: 505 x 203 x 375 mm
・ Weight: 18 kg
・ Compatible Electrode Diameter: 2.6-3.2 mm
Accessories
・ 5m WP26 TIG torch cable
・ 3m welding cable
・ 3m earth cable
・ Welding mask with auto-darkening filter
・ Small high-quality gas regulator
・ 3m gas hose and retaining rings
・ Collets & Collet Bodies #1.6, #2.4
・ Ceramics #5, #6, #7, #8
・ Short back cap & long back cap (TIG)
・ Gold Tungsten #1.6, #2.4
Warranty
・ 1-year warranty for the welder unit
The Rilon TIG300A (Down-Slope)** is an optimal choice for tasks requiring precise and high-quality TIG welding.
