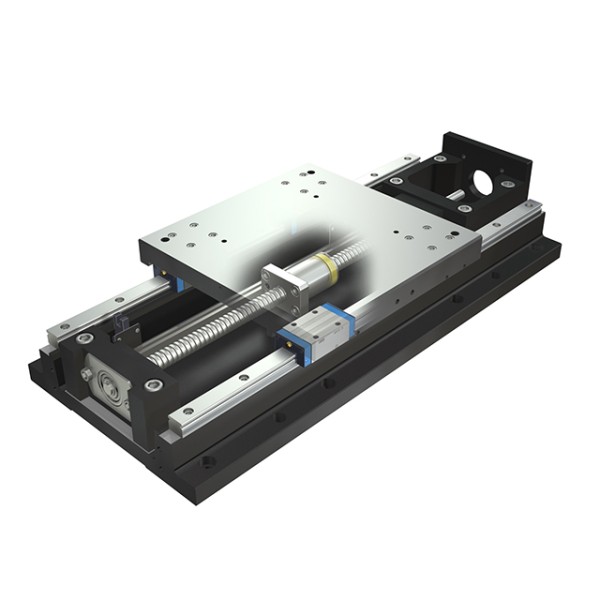

TSLH Precision Table | Large-Scale, Maintenance-Free Stage with ±0.002 mm Accuracy

The IKO TSLH Series delivers high-precision, large-scale positioning with a robust cast iron frame and maintenance-free C-Lube Linear Ways. Ideal for assembly, inspection, and machining equipment requiring long stroke and high rigidity.
■ Features
- Large-Scale Capacity: Available in widths from 120 to 420 mm and strokes up to 1,000 mm for broad applications.
- High Rigidity: Cast iron slide table and bed structure ensure vibration resistance and durability.
- Maintenance-Free: C-Lube technology provides long-lasting lubrication without maintenance for ball screws and guides.
- Precision Performance: Positioning repeatability of ±0.002 mm meets high-accuracy demands in manufacturing and metrology.
- Customizable Options:
Bellows for dust protection
AC servo and stepper motor compatibility
Optional black chrome plating for corrosion resistance
■ Specifications
- Material: Cast iron slide table and bed
- Guide Mechanism: Dual Linear Way with C-Lube
- Drive System: Precision ball screw
- Repeatability: ±0.002 mm
- Table Widths: 120 / 220 / 320 / 420 mm
- Stroke Length: 100–1,000 mm
■ Applications
- High-precision assembly systems
- Machining centers and automation lines
- Coordinate measuring and inspection systems
■ IKO Thompson Asia Coverage
- Thailand: Based in Bangkok, covering Chonburi, Ayutthaya, Samut Prakan, and surrounding regions
- Singapore
- Malaysia: Kuala Lumpur, Penang, and surrounding regions
- Indonesia: Jakarta and surrounding regions
- Vietnam: Ho Chi Minh City, Hanoi, and surrounding regions
- India
👉 Download the brochure or contact us for specification matching.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
