TOP RICH METAL CO., LTD. Product List TMX-2000 multifunction lathe supporting precision machining with a B-axis tool spindle (Thailand)
  • TMX-2000 multifunction lathe supporting precision machining with a B-axis tool spindle (Thailand)

TMX-2000 multifunction lathe supporting precision machining with a B-axis tool spindle (Thailand)

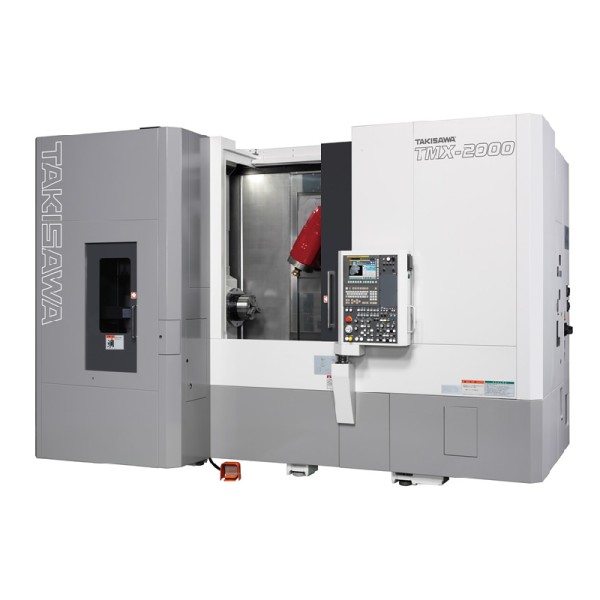

TAKISAWA TMX-2000 is a multifunctional lathe equipped with a B-axis tool spindle, enabling high-precision machining. The B-axis allows for a wide range of operations, including turning, milling, and drilling, all in one clamping, reducing setup time and improving machining efficiency. Its design is flexible enough to handle large workpieces, with precise end-face machining possible while fixed with the C-axis spindle.
■ Features
B-axis tool spindle: With ±130° high-precision indexing for versatile machining
Wide machining range: X-axis 640mm, Y-axis 230mm, and Z-axis 690mm, accommodating various workpieces
Multiple operations in one clamping: Turning, milling, and drilling completed in a single setup
High-precision spindle: Spindle speed of 12,000 min⁻¹ for high-speed and precision machining
Expanded tool storage: Accommodates up to 80 tools for complex machining operations
■ Specifications
Maximum turning diameter: φ500mm
Maximum turning length: 610mm
Bar capacity: Left spindle φ65mm, right spindle φ51mm
B-axis rotation range: ±130°
Spindle speed: Left spindle 5,000 min⁻¹, tool spindle 12,000 min⁻¹
ATC tool storage capacity: 40 tools (optional up to 80 tools)
Machine weight: 13,700kg
Installation dimensions: 4,150×2,923mm
■ Applications
The TMX-2000 is suitable for various industries, including:
Aerospace industry: Capable of machining complex, high-precision parts
Automotive industry: Efficient production of engine and chassis components
Mold manufacturing: Ideal for precision parts requiring multi-sided machining in a single setup
General machining: Multifunctional capabilities support a wide range of workpieces across industries
The TMX-2000 is an ideal multifunctional lathe, offering a wide range of machining capabilities with its B-axis tool spindle.
For more details, download the PDF or feel free to contact us.
