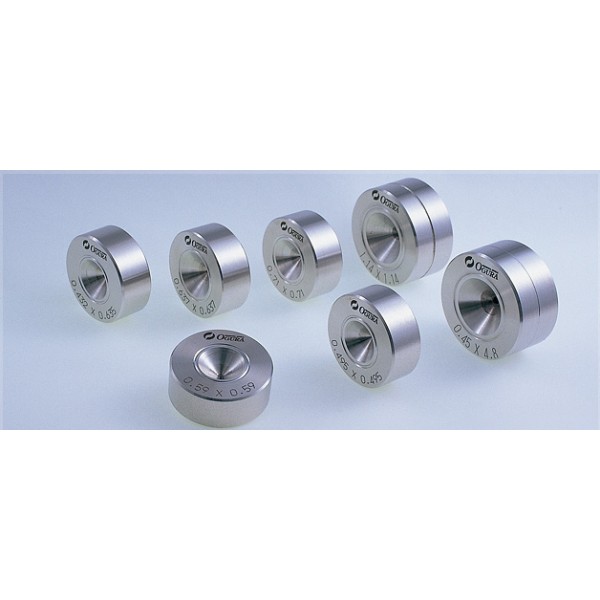

How Many Types of Wire Drawing Dies Are There? What Are They Used For and Which Industries Use ?

Wire Drawing Dies are essential tools used to reduce the diameter of wire by pulling it through a die. These tools are crucial in manufacturing various types of wire such as steel, copper, aluminium, and stainless steel wires, ensuring the final product meets specific size and quality requirements.
■ Types of Wire Drawing Dies
Wire drawing dies can be classified based on the material they are made from. The main types include:
1. Tungsten Carbide Dies
✅ Properties:
- Made from Tungsten Carbide, known for its strength and durability.
- Suitable for drawing medium to large-diameter wires.
- Long service life when used with non-hardened metals.
✅ Applications:
- Ideal for steel wire, copper wire, and aluminium wire.
- Used in industries such as construction wire, electrical cables, and welding wire production.
2. Natural Diamond Dies
✅ Properties:
- Made from natural diamond, offering the highest hardness.
- Provides ultra-smooth wire surfaces.
- Best suited for high-precision wire applications.
✅ Applications:
- Used for gold wire, silver wire, and fine copper wire.
- Common in electronics, micro-component manufacturing, and jewellery industries.
3. Polycrystalline Diamond (PCD) Dies
✅ Properties:
- Made from synthetic diamond (PCD), offering excellent durability.
- More wear-resistant than tungsten carbide, and more cost-effective than natural diamond.
- Suitable for harder metals and cost-efficient wire drawing operations.
✅ Applications:
- Ideal for high-carbon steel wire, copper wire, and aluminium wire.
- Used in cable manufacturing, spring production, and automotive components.
4. Ceramic Dies
✅ Properties:
- Excellent resistance to friction and high temperatures.
- Suitable for high-tension wires such as stainless steel wires.
- Longer lifespan than carbide, though not as hard as diamond.
✅ Applications:
- Used for stainless steel wire, titanium wire, and nickel wire.
- Common in aerospace, automotive, and chemical industries.
■ Which Industries Use Wire Drawing Dies?
✅ Electronics Industry – Produces copper and silver wire for electrical cables and electronic components.
✅ Construction Industry – Manufactures reinforced steel wire, mesh wire, and steel fencing.
✅ Automotive Industry – Produces spring wire and high-strength steel wire for auto parts.
✅ Aerospace Industry – Manufactures stainless steel and titanium wire for aircraft structures.
