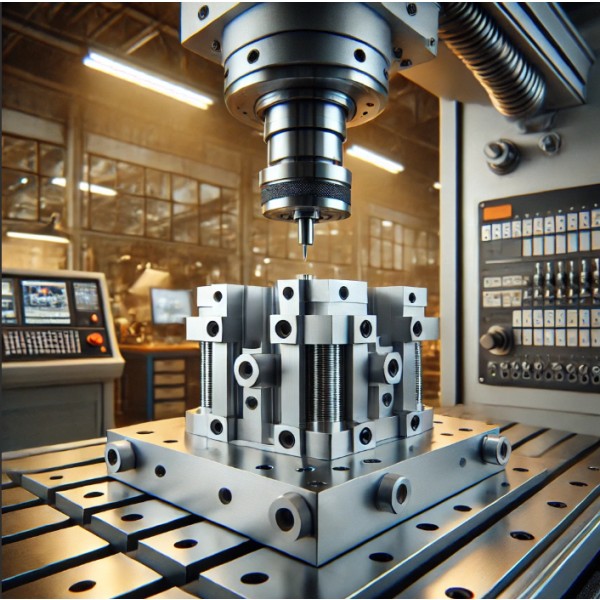

• How important are jigs and fixtures for manufacturing?

How important are jigs and fixtures for manufacturing?

ジグとフィクスチャーは製造プロセスにおいて、作業の精度、一貫性、速度を向上させるために使用される装置です。ジグは切削工具を保持し、案内する役割を果たし、フィクスチャーはワークピースを正確な位置に固定します。これらは、切削、穴あけ、旋削、溶接、組み立てなどの作業で重要な役割を果たし、自動車、航空機、電子機器などの産業で使用されます。
🔍 ジグとは何か?
🔹 ジグは、例えばドリルや切削機などの工具の位置決めと案内を支援する装置です。
🔹 ジグはワークピースを固定し、工具を自動的に正しい位置に導くように設計されています。
🔹 使用例:ドリルジグは、位置測定を行わずに穴あけの精度を向上させます。
🔍 フィクスチャーとは何か?
🔹 フィクスチャーは、切削、穴あけ、旋削を正確かつ安全に行うためにワークピースを固定する装置です。
🔹 フィクスチャーは工具を制御するわけではなく、確実な位置でワークピースを支持し、機械の圧力に耐えることができます。
🔹 使用例:ミリングフィクスチャーは、ミリングマシン(フライス盤)でワークピースを固定し、精密な切削を実現します。
🎯 ジグとフィクスチャーの利点
✅ 精度が向上し、ワークピースのエラーが減少します。
✅ 作業時間が短縮され、生産が早く、一貫性があります。
✅ 高い技術を要する作業者の必要が減少し、労働コストが削減されます。
✅ 大量生産に適しており、製品の品質を維持できます。
● 適切なジグとフィクスチャーの選び方
🔸 ワークピースと使用する機械の種類に合わせて選びます。
🔸 ジグとフィクスチャーの材質を考慮し、耐久性があり、発生する力に耐えられるものを選びます。
🔸 CAD/CAM技術を使用して設計することで、最高の精度を実現します。
