SEIKA SANGYO (THAILAND) CO., LTD.

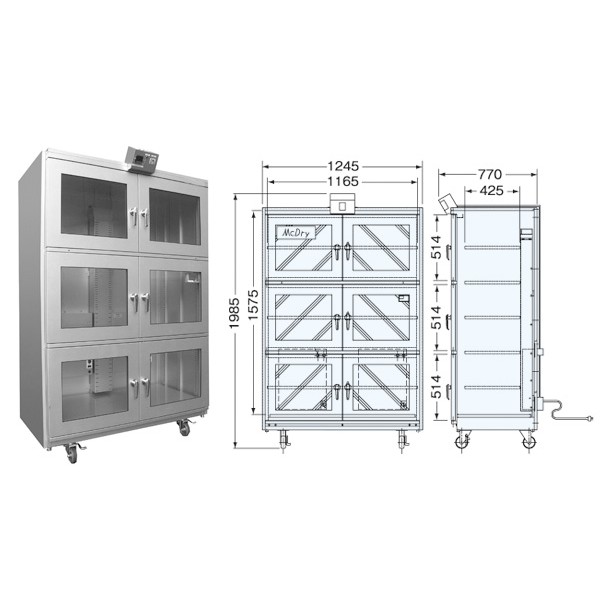

MacDry Dehumidifying Storage Cabinet 1200L Low-Temperature, Low-Humidity Baking Oven MB-1001 1%RH Thailand Bangkok

MacDry MB-1001 enhances the reliability of IC packages. With its low-temperature, low-humidity baking oven, it sets a new standard for quality preservation.
The MacDry MB-1001 is a 1200-liter capacity low-temperature, low-humidity baking oven optimized for low-temperature baking of IC packages. Compliant with IPC/JEDEC standards, it prevents moisture damage to electronic components and significantly improves their quality and lifespan by providing baking at up to 50°C and an ultra-low humidity environment of 1%RH.
■ Features
低温ベーキング温度：Operable at 40°C (maximum 50°C), it provides gentle heat treatment suitable for IC packages.
極低湿度環境：Provides a minimum humidity of 1%RH, ideal for protecting moisture-sensitive components.
多用途性：By turning off the baking heater, it can also be used as a room-temperature dry box.
静電気放電対策：Equipped with an electrostatic discharge function compliant with IEC-61340-5-1, it protects IC packages from damage caused by static electricity.
超強力急速ドライユニット：Dries the interior in a short time, supporting an efficient baking process.
大型デジタル湿度計：Makes it easy to accurately monitor the internal humidity, improving the precision of quality control.
耐荷重性能：With a load capacity of 100kg per shelf, it can accommodate the storage of heavy items.
■ Applications
The MB-1001 provides an ideal environment for the storage and processing of IC packages, semiconductor devices, and other moisture-sensitive electronic components. By baking in a low-temperature, low-humidity state, it prevents performance degradation of components and enhances product reliability.
The MacDry MB-1001 is a powerful tool for quality preservation for electronic component manufacturers. With its low-temperature, low-humidity baking oven, it contributes to maintaining the quality and extending the lifespan of IC packages.
For more details, please download the PDF or feel free to contact us.
