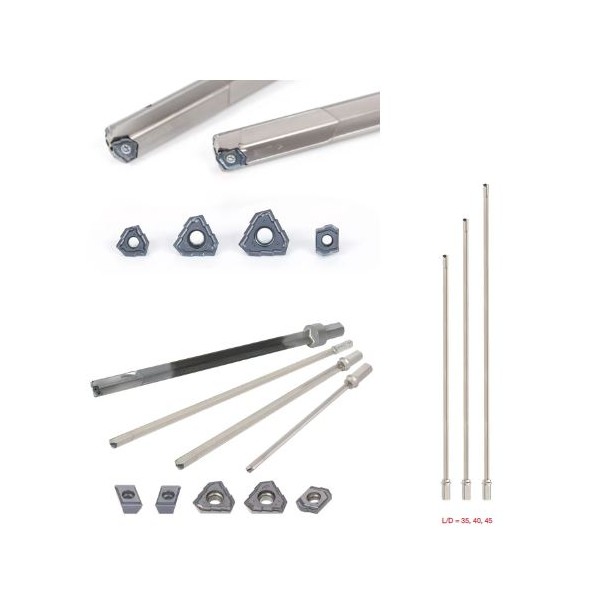

• Indexable insert drill "DeepTri-Drill" optimized for roundness and straightness

Indexable insert drill "DeepTri-Drill" optimized for roundness and straightness

優れた切りくず処理とH級3コーナ仕様インサートで、深穴加工における高精度と高能率を両立する「DeepTri-Drill」。
DeepTri-Drillは、真円度と真直度、加工面粗さに優れた刃先交換式深穴加工用ドリルです。H級3コーナ仕様のインサートを採用し、工具管理の容易さと高い経済性を実現します。さらに、ガイドパッドを使用することで、安定した切削性能を発揮し、高能率加工が可能です。旋盤、マシニングセンタ、ガンドリルマシンに対応する汎用性の高さも特長です。
■ 特長
- 優れた真円度・真直度・加工面粗さ
・ 高精度な設計により、深穴加工でも優れた仕上がりを提供
- 良好な切りくず処理性能
・ 安定した切りくず排出により、高能率加工を実現
- H級3コーナ仕様インサート
・ 3コーナインサートでコストパフォーマンスを向上
・ H級精度により高精度加工をサポート
- ガイドパッドの採用
・ 切削中の工具安定性を向上し、振動を抑制
- 幅広い対応機械
・ 旋盤、マシニングセンタ、ガンドリルマシンでの使用が可能
■ 仕様
- 製品番号: No. 430-J(全般)
- サブモデル: No. 430S1-J(L/D比35、40、45)、No. 430S2-J(AH9130)、No. 430S3-J(ø10)
- ガイドパッド: No. 538-J(全般)
- インサート仕様: H級3コーナ仕様
■ 加工用途
- 高精度深穴加工
- 自動車部品や航空機部品の内部加工
- エネルギー関連機器のパイプ加工
- 高能率が求められる大量生産ライン
DeepTri-Drillは、深穴加工における高精度と安定性を追求した刃先交換式ドリルです。工具管理の容易さと経済性も備え、生産性向上に貢献します。
■ 詳細はPDFをダウンロードしていただくか、お気軽にお問合せください。
