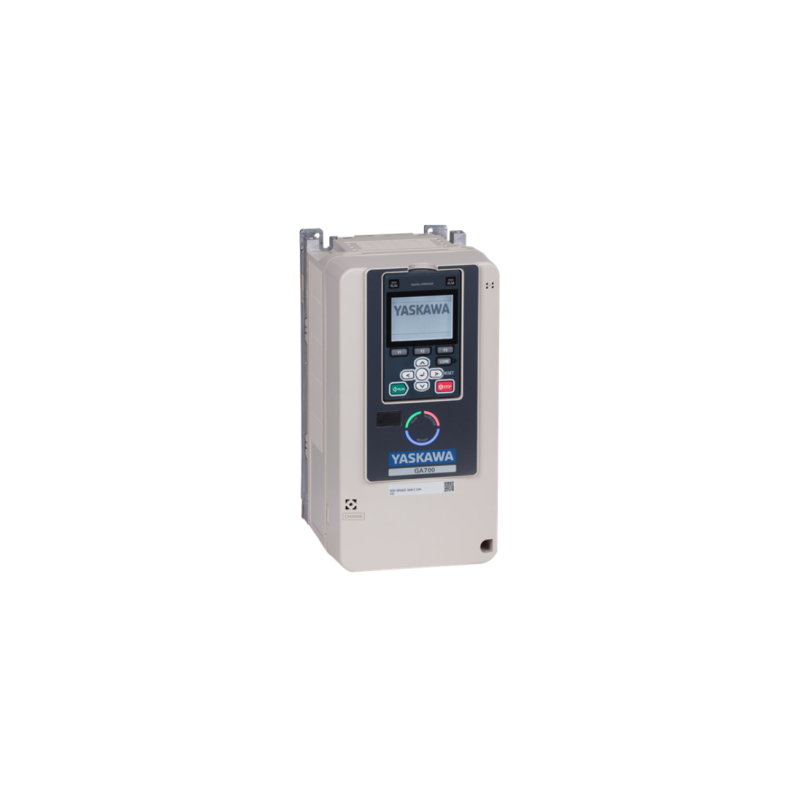

GA700 Multi-Functional AC Drive｜Up to 630 kW, Tuning-Free, IoT-Ready for All Industrial Applications

The GA700 from YASKAWA is a high-performance, next-generation AC drive supporting up to 630 kW. It enables intuitive, tuning-free motor control, smartphone configuration, and advanced safety all in one compact, industrial-grade unit ready for Smart Factory integration.

The GA700 is built to control induction motors, permanent magnet (PM) motors, and synchronous reluctance motors without manual tuning, thanks to EZ Vector Control. It supports power ratings up to 630 kW (400V class), making it ideal for conveyors, presses, fans, elevators, and other high-demand applications.

With the DriveWizard® Mobile app, users can configure, monitor, and troubleshoot wirelessly. Built-in USB and Bluetooth® capabilities further simplify parameter management. Logic programming through DriveWorksEZ® allows for flexible, PLC-free automation, while the STO (Safe Torque Off) function ensures compliance with SIL3/PLe safety standards.

■ Key Features
- Supports up to 630 kW for heavy-duty industrial systems
- Tuning-free EZ Vector Control for IM, PM, and synchronous reluctance motors
- Setup and monitoring via smartphone (DriveWizard® Mobile)
- USB and Bluetooth® for parameter backup and diagnostics
- Built-in logic control via DriveWorksEZ® eliminates need for PLC
- STO (SIL3/PLe) safety function built-in (TÜV certified)
- 24V control power allows data monitoring during power outages
- Coated PCBs and IP20/IP55 protection options for harsh environments

■ Technical Specifications
- Voltage classes:
　・200V: 0.4–110 kW
　・400V: 0.4–630 kW
- Output frequency: Up to 590 Hz
- Control methods: V/f, Open/Closed Loop Vector, EZ Vector
- Communication: Modbus TCP/IP, EtherNet/IP, PROFINET, MECHATROLINK, and more
- Safety: STO certified to SIL3/PLe (TÜV)

■ Ideal Applications
- Conveyor and material transport systems
- HVAC energy optimization with fans and pumps
- Precision torque control in cranes, lifts, and hoisting machines
- Processing machines like extruders, presses, grinders
- IoT-ready automation for Smart Factory infrastructure

With its scalable performance, logic-free automation, and digital connectivity, the GA700 is the smart AC drive solution for modern industrial demands across Thai factories and beyond.

■ Download detailed specs or contact us for more information.

#GA700 #InverterDrive #ACDrive #YaskawaInverter #HighPowerInverter #SmartFactory #MotorControl #EnergyEfficientDrive #IndustrialAutomation #FactoryAutomation
