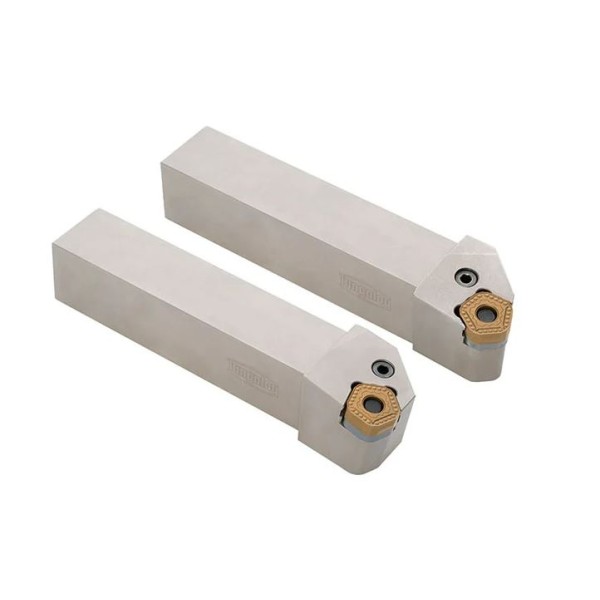

10-corner turning insert tool TurnTenFeed that perfectly combines cost-effectiveness and machining performance.
TurnTenFeed is a turning tool designed with 10-corner inserts and holders that support deep cutting and high-feed machining. It significantly reduces tooling costs and increases machining efficiency. Suitable for medium to heavy turning applications and supports various applications in production lines.
■ Features
- Holders supporting deep cutting and high-feed machining
HD holders for deep cutting and HF holders for high-feed machining. Supports a maximum cutting depth of 7 mm and a maximum feed of 2.0 mm.
- Cost-effective 10-corner inserts
Double-sided inserts with 10 cutting edges help reduce tooling costs compared to conventional ISO inserts.
- New MNW chip breaker
Designed with a structure featuring protrusions on the contact surface, which improves chip control efficiency.
- Lever clamping system and dovetail structure
Enhances insert clamping rigidity while improving chip evacuation to support high-efficiency machining.
- Linear wiper for excellent surface quality
The linear wiper design on the cutting edge ensures excellent surface quality even during high-feed machining.
■ Specifications
- Holder types: HD (for deep cutting), HF (for high-feed machining)
- Maximum cutting depth: 7 mm
- Maximum feed: 2.0 mm
- Inserts: Double-sided 10-corner inserts
- Clamping system: Lever system and dovetail structure
■ Applications
- Medium to heavy turning applications
- High-efficiency machining in production lines
- Production lines aiming to reduce costs
TurnTenFeed is an ideal choice for reducing tooling costs and increasing machining efficiency. With its advanced design and features, it helps solve production line challenges and supports enhanced manufacturing productivity.
■ For more details, please download the PDF or feel free to inquire.
