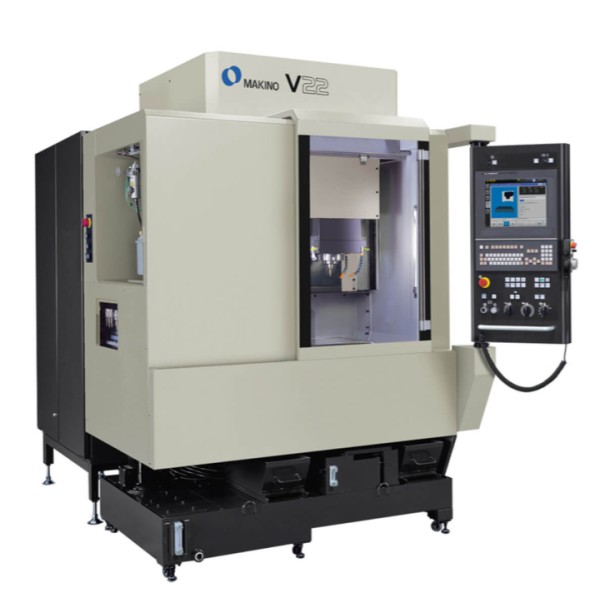

V22 Vertical Machining Center MAKINO Thailand

The MAKINO V22 Vertical Machining Center combines user-friendly design and environmentally friendly operation, enhancing efficiency and precision in small part manufacturing.
The MAKINO V22 Vertical Machining Center is designed for high operability and reduced environmental impact. The work table is set at a height of 900 mm from the floor, and the control panel is designed to rotate 180 degrees, facilitating convenient operation. The production area, designed for small workpieces, reduces installation space with its compact structure, offering flexibility for installation anywhere in the factory. It also reduces power consumption by half, leading to economic efficiency and environmental consideration.
Features
User-Friendly Design: The work table height and the rotating function of the control panel reduce the burden on operators.
Compactness and Rigidity: The optimized design ensures machine rigidity while keeping it lightweight.
Low Power Consumption: Operates with approximately half the power, 15kVA, reducing operating costs and promoting environmental care.
Hybrid Tool Length Measurement Device: Accurately measures tool tip positions, resulting in smooth surfaces with minimal seams between different tools.
Specifications
Spindle: Taper HSK-A50, 16,000 rpm, 20kW power
Dimensions: Compact structure
Special Features: User-friendly control panel, low power consumption, hybrid tool length measurement device
The V22 Vertical Machining Center is one of the high-performance and environmentally friendly machines offered by MAKINO. With these features, it enables precise and efficient production of small workpieces.
For more information, please download the PDF or contact us.
