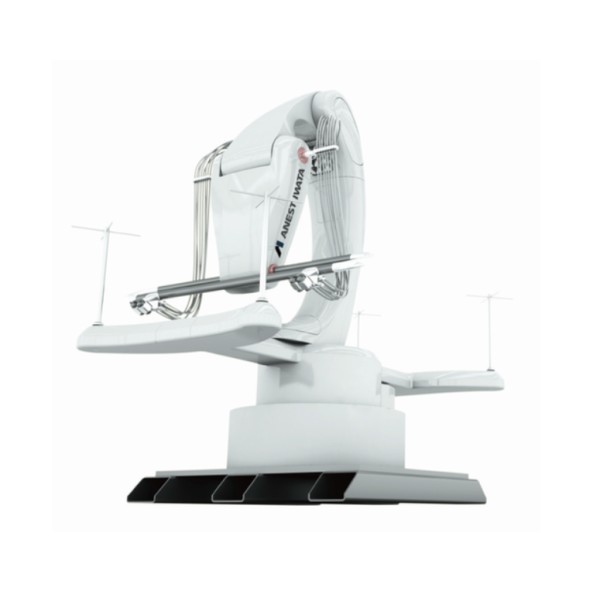

SWAN Pro Robot Paint Spraying Robot (SWAN Pro Robot) Thailand Bangkok

Painting robots are robots specifically designed to perform painting or surface coating tasks on various materials. These robots are often used in manufacturing industries that require high precision and efficiency in painting.
Revolutionize your processes with easy, high-quality painting using SWAN Pro.
SWAN Pro is a painting robot that offers ease of use and high safety. With offline programming, flexible work planning is possible, resulting in improved painting efficiency and quality.
Key Features
Offline Programming: Can be pre-programmed via SWANIST software, reducing variations in operator skill and ensuring consistent painting results.
Safety: Utilizes pressure-resistant and explosion-proof motors, enhancing safety in painting environments and reducing risks from fumes or sparks.
Easy Installation: Requires no complex installation. The use of specialized spray guns also improves maintainability.
Cost Reduction: Minimizes paint and thinner consumption, thereby reducing material costs.
Specifications
SWAN Pro has a body weight of approximately 680 kg, power supply AC200 (3-phase) 3kVA. Compressed air requirement is 0.5MPa, 400L/min. It can be equipped with up to 4 spray guns. The maximum operating speed is 800mm/s, and the positional repeatability is ±0.5mm, indicating high precision.
For more information, please download the PDF file or contact us.
