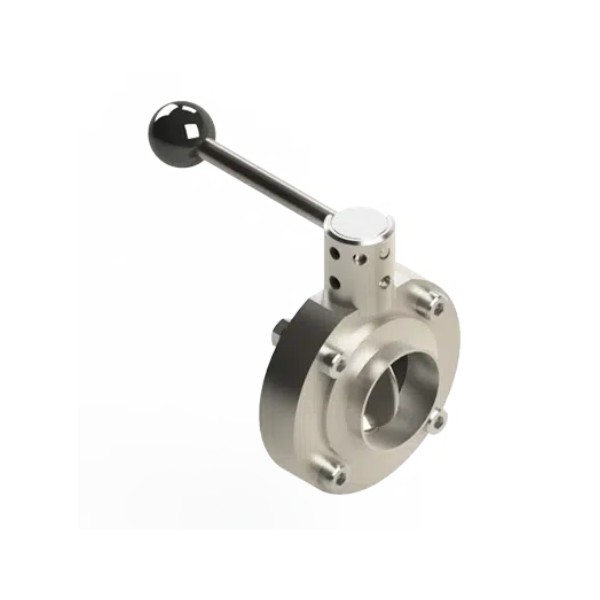

Hybrid Butterfly Valve Manual/Pneumatic | Stainless High-Temp Valve for Industrial Use


A stainless steel butterfly valve operable via manual handle or pneumatic actuator. Ideal for food, pharmaceutical, and chemical plants. Optional C-TOP control unit available. Designed for durability and high-temperature use.
■ Overview
This hybrid butterfly valve is made of stainless steel and supports both manual operation (3-position or 12-position handles) and automatic pneumatic actuation. It is suitable for hygienic, corrosion-resistant, and high-temperature fluid control applications in industries such as food processing, pharmaceuticals, and chemicals. This dual-mode butterfly valve enhances flexibility and automation compatibility in fluid control systems.
■ Key Features
・ Switchable between manual and pneumatic operation (Hybrid Control)
・ 304L or 316L stainless steel body (Corrosion-Resistant Valve)
・ FKM seal supports up to 200°C (High-Temperature Valve)
・ Multiple seal options: EPDM, Silicone, FKM (Viton)
・ Compatible with C-TOP control and feedback units
・ Available sizes from 1″ to 4″ (DN25–DN200)
■ Specifications
・ Body Material: SUS304L / SUS316L
・ Seal Material: EPDM, Silicone, FKM (Viton)
・ Max Operating Pressure: 10 bar
・ Air Pressure (for Actuator): 5–7 bar
・ Operating Temperature:
・ EPDM: –10 to 135°C
・ Silicone: –10 to 170°C
・ FKM: –10 to 200°C
・ Connection Sizes: 1″ to 4″ (DN25 to DN200)
■ Applications
・ Fluid shut-off in sanitary beverage/food production lines (Sanitary Valve)
・ High-temperature fluid control in chemical plants (Chemical Grade Valve)
・ GMP-compliant pharmaceutical production (GMP Valve)
・ CIP/SIP-compatible piping systems (CIP/SIP Valve)
■ Target Industries
・ Food & Beverage
・ Pharmaceutical & Biotechnology
・ Chemical & Cosmetics
・ Water and Wastewater Treatment
・ Electronics and Precision Components
Dual-operation capability ensures flexible and reliable fluid control in demanding industrial environments.
#ButterflyValve #HybridValve #ManualPneumaticValve #SanitaryValve #HighTempValve #CIPValve #IndustrialValve #PharmaValve #FoodGradeValve #AutomationReadyValve
