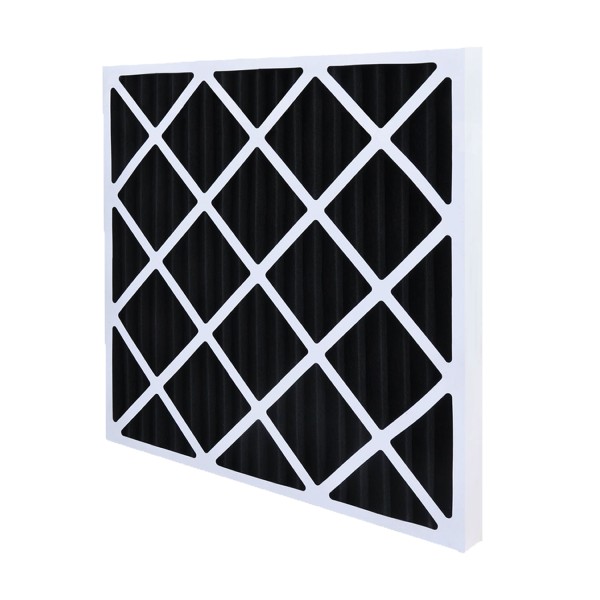

「Black-Pleat」 Carbon Filter

Black-Pleat is an industrial filter utilizing activated carbon, perfect for removing air pollutants and odors in cleanrooms and commercial facilities. It can operate in high-temperature environments up to 80°C.
Black-Pleat is an industrial filter designed to effectively remove airborne pollutants and unwanted odors using activated carbon. This filter is suitable for various applications, including cleanrooms, shopping malls, offices, and stadiums. It offers simple and quick installation and is available in multiple pleated filter sizes. Additionally, it can continuously operate in temperatures up to 80°C while maintaining high performance in environments with 80% relative humidity.
Features:
Odor Removal with Activated Carbon: Reduces odor components in the air by 70%.
Designed for Industrial Use: Ideal for diverse environments such as cleanrooms, commercial facilities, and stadiums.
Heat Resistance: Capable of continuous operation in temperatures up to 80°C.
High Humidity Resistance: Maintains stable performance even in 80% relative humidity.
Simple Installation: Easy and quick to install.
Metal-Free Construction: Eco-friendly design using recyclable paper for the filter frame.
Specifications:
Frame Material: Paper frame (corrugated cardboard)
Media Material: Synthetic material containing activated carbon
Odor Removal Efficiency: 70%
Applicable Airflow:
3400 CMH (24×24×4 inches)
1700 CMH (12×24×4 inches)
3400 CMH (24×24×2 inches)
1700 CMH (12×24×2 inches)
Recommended Pressure Drop:
80 Pa (24×24×4 inches, 12×24×4 inches)
50 Pa (24×24×2 inches, 12×24×2 inches)
Applications:
Cleanrooms: Effectively removes pollutants and odors in environments that require high air purity.
Shopping Malls and Stadiums: Improves air quality and maintains a comfortable environment in large-scale facilities.
Offices: Useful for air purification and odor management in commercial spaces.
The Black-Pleat filter delivers long-lasting, high-performance air purification and odor removal, making it an ideal solution for a wide range of industrial applications.
