Primus Co.,Ltd.

PMV-SERIES_NEW_12-09-66

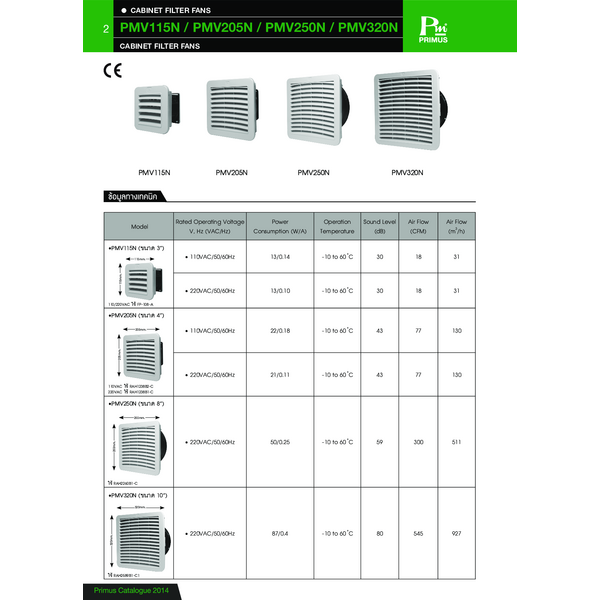

The Primus PMV-SERIES Cabinet Filter Fans (PMV115N, PMV205N, PMV250N, PMV320N) are CE-certified cooling solutions for electrical cabinets and control panels, designed to provide high airflow while filtering dust. These fans offer a wide range of airflows from 31 to 927 m³/h (18 to 545 CFM) and are available in various sizes, from 115mm to 320mm. Key features include an aesthetic, slim design for flush mounting, an IP54 protection rating, and easy, robust installation via a Clips-Lock mechanism. Maintenance is simplified by a Flap-Open design, allowing for quick filter replacement. The series supports both intake (A) and exhaust (P) air directions, with optimal installation typically at the top of the cabinet for hot air exhaust, complemented by a PMF-N-SERIES filter mask at the bottom for filtered air intake. Technical specifications vary by model, with operating voltages of 110VAC/50/60Hz or 220VAC/50/60Hz, power consumption ranging from 13W/0.14A to 87W/0.4A, an operating temperature range of -10 to 60 °C, and sound levels from 30 dB to 80 dB. Wiring is facilitated by Spring Terminals. Optional accessories include PMF-SERIES filter masks, available in four sizes, and thermostats (Analog CMA-001, Digital CMA-002) to extend fan lifespan by activating operation only when required by temperature conditions.
