MMT ENGINEERING CO.,LTD
TOP MMT ENGINEERING CO.,LTD By Catalog IM-5MET
  • IM-5MET

IM-5MET

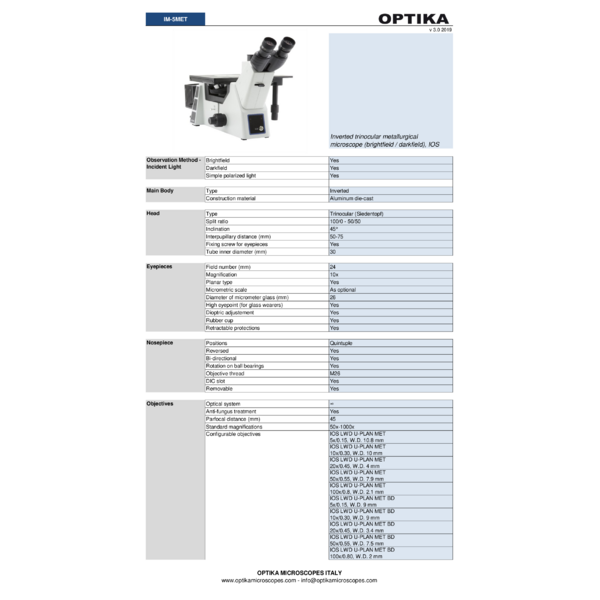

The OPTIKA IM-5MET is an inverted trinocular metallurgical microscope designed for brightfield, darkfield, and simple polarized light observation. It features a Siedentopf head with a 45° inclination and 100/0-50/50 split ratio, 10x/24mm high eyepoint eyepieces, and a quintuple reversed nosepiece with M26 objective threads. The system utilizes IOS LWD U-PLAN MET and MET BD objectives, offering magnifications from 50x to 1000x with various working distances (e.g., 5x/0.15 W.D. 10.8mm to 100x/0.8 W.D. 2.1mm for MET, and similar for MET BD and F MET series). Its mechanical stage measures 240x250mm with a 50x50mm rack and pinion moving range and 0.1mm X-Y Vernier scale accuracy. Focusing is achieved via coaxial coarse and fine adjustment with 2µm resolution. Illumination is provided by a 100W halogen lamp (3,500K, >3,000 hours lifetime) with brightness control. The microscope includes a metallographic attachment with a polarizer, 360° rotatable analyzer, darkfield illumination, and centerable diaphragms, powered by an external 100/240 Vac, 50/60 Hz supply with ECO function.

DOWNLOAD

Catalog Download

Name*
Company Name*
Country*
Department
Position
Email Address*
Phone Number
Business Category
motive ※
motive
Information you want to know
Information you want to know
Information you want to know
Information you want to know
Consent Regarding the Handling of Personal Information ※

NC Network Co., Ltd. complies with laws, regulations, and other standards related to the handling of personal information, and takes the utmost care to properly manage and protect personal information so that users can use our services comfortably and with peace of mind.

We also conduct periodic audits and inspections of our compliance program and personal information protection system and make continuous improvements. We take reasonable preventive and corrective measures against internal and external risks such as unauthorized access, loss, destruction, falsification, and leakage of all personal information. The following outlines how NC Network handles personal information.

Purpose of Use

The personal information you provide will be used by NC Network for the following purposes and will not be used for any other purpose.

  • To ensure smooth commercial transactions conducted through NC Network
  • For distributing email newsletters
  • For surveys regarding usage status and environment, and for preparing statistical materials aimed at improving NC Network services
  • For identity verification during user support

Disclosure of Personal Information to Third Parties

As a general rule, NC Network will not disclose the personal information you provide to third parties. However, exceptions apply in the following cases.

  • When the user has given prior consent for the disclosure of personal information
  • When NC Network determines that it is necessary to protect its rights, property, or services due to actions by the user that violate the Terms of Use or other regulations
  • When there is an imminent danger to someone's life, body, or property and urgent action is required
  • When formal inquiries are received from courts, police, or other public institutions based on applicable laws
  • When disclosure or provision is required under applicable laws and regulations

Disclosure, Correction, and Deletion of Personal Information

In principle, NC Network allows users to view their registered information at any time. These reference screens serve as the procedures for the disclosure, correction, and deletion of personal information. Users may also apply for withdrawal at any time to delete their registered personal information.

Privacy Policy Revisions

To continue protecting users’ personal information, NC Network may revise all or part of this privacy policy without prior notice to users. Any significant changes will be announced on the NC Network website.

Inquiries Regarding Personal Information

For other inquiries regarding personal information, please contact us by email or telephone at the contact information below.

Online Contact

+66-2-254-1801 (Support Hours: 9:00–18:00)

Please read and agree to the Terms of Use and Privacy Policy before submitting.
Precautions

Acts such as advertising or promotion using the inquiry form are prohibited by our terms of service. If discovered or reported, your use may be suspended. Please be aware of this in advance.

The questionnaire content and contact information will also be notified to selected exhibitors.

Download other materials

Check All

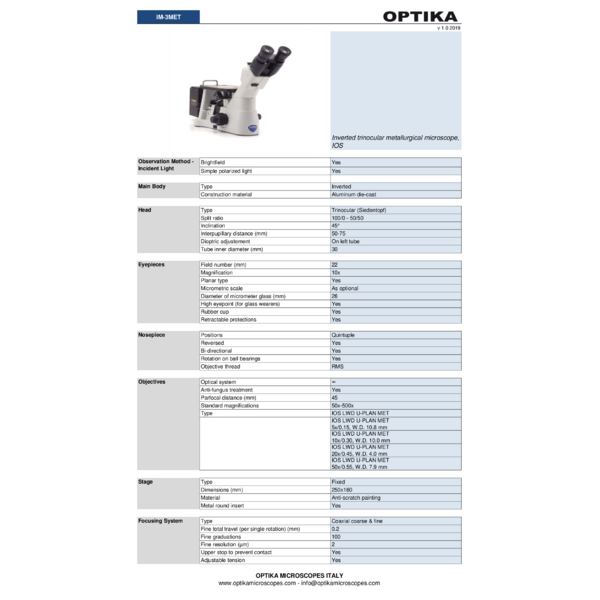

OPTIKA_IM-3MET
