• Plano Concave lens

Plano Concave lens

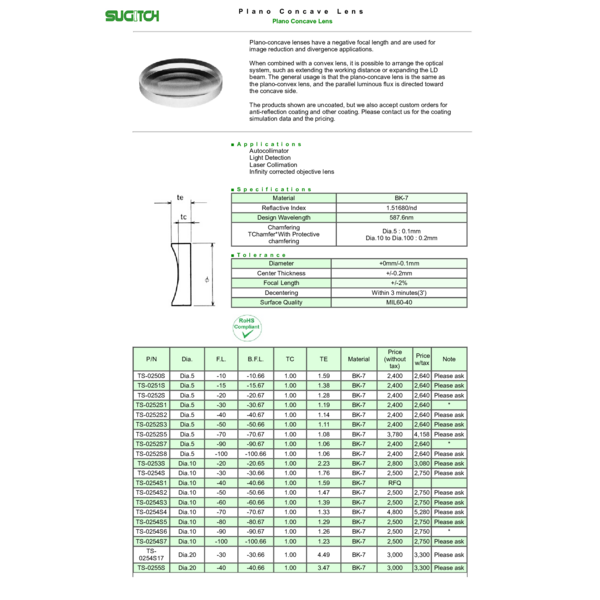

This catalog details Plano Concave lenses, featuring negative focal lengths for image reduction and beam divergence. Made of BK-7 glass (n=1.51680 at 587.6nm), they are for autocollimators, light detection, laser collimation, and infinity-corrected objective lenses. Pairable with convex lenses to extend working distance or expand LD beams, standard products are uncoated, but custom AR coatings are available. Technical specifications include diameter tolerance of +0mm/-0.1mm, center thickness +/-0.2mm, focal length +/-2%, decentering within 3 minutes, and MIL60-40 surface quality. Available in various diameters and focal lengths, these RoHS compliant lenses offer precise performance.
