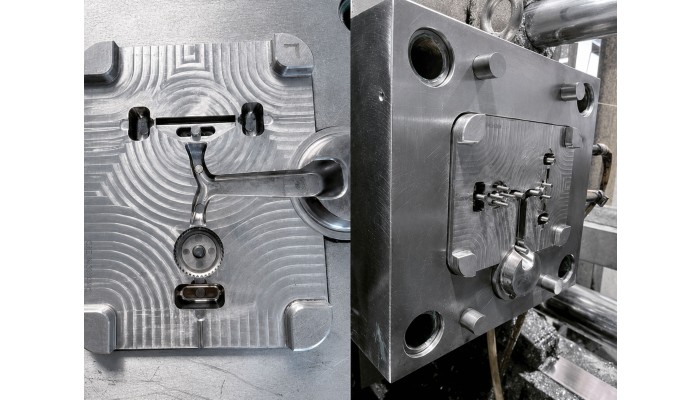

What to Review in Operating Conditions Before Changing Die Material When Early Heat Checking Occurs in Die Casting Dies
In the die casting industry, the early occurrence of heat checking on die surfaces significantly impacts manufacturing costs and maintenance man-hours. When heat checking occurs prematurely, switching the die material is often considered immediately. However, it is crucial to first organize the operating conditions on the shop floor and isolate the factors causing the issue. This article explains the key points regarding cooling conditions, temperature management, heat treatment quality, and material selection that should be verified before reconsidering die materials.
Table of Contents
- Understanding the Causes of Heat Checking in Die Casting Dies
- Checklist for Cooling Systems and Temperature Management in the Factory
- The Importance of Quenching and Tempering Processes Affecting Toughness
- Microstructure Evaluation and the Selection of BGH Premium Hot Work Tool Steels
- Integrated Special Steel and Die Maintenance Solutions Provided by STOREMATE
- Frequently Asked Questions (FAQ)
- Key Terms for Understanding This Article
Understanding the Causes of Heat Checking in Die Casting Dies
Heat checking on the surface of die casting dies is primarily caused by thermal fatigue resulting from repeated contact with high-temperature molten metal and cooling agents during operation. The die surface undergoes repeated thermal expansion from heating and thermal contraction from cooling. This thermal cycle causes thermal stress to accumulate on the die surface, eventually manifesting as microscopic cracks. While heat checking begins as tiny cracks on the surface in its early stages, continued use can cause these cracks to propagate into the internal metallic structure, potentially affecting product quality and die lifespan.
Checklist for Cooling Systems and Temperature Management in the Factory
Before changing the grade of the die steel, it is necessary to first check the status of the cooling system and temperature management on the shop floor. Clogged cooling lines, insufficient cooling water flow, and localized cooling unevenness can cause the die surface temperature to rise excessively or create large temperature differentials between different areas. As a result, thermal stress concentrates, accelerating the initiation and propagation of heat checking.
Furthermore, preheating conditions prior to starting operations are also critical. Properly preheating the die mitigates excessive thermal stress caused by sudden temperature differences, thereby reducing the risk of heat checking. Before considering a change in steel grade, it is important to organize and verify that there are no issues stemming from shop floor conditions, such as cooling water flow rate, cooling circuit clogging, die surface temperature, preheating conditions, and cycle conditions.
The Importance of Quenching and Tempering Processes Affecting Toughness
Resistance to heat checking is not determined solely by the steel grade used. The quality of quenching and tempering is also a crucial factor governing die lifespan. If heat treatment is not performed correctly, residual stress remains inside the die, which can reduce toughness. When toughness is insufficient, microscopic cracks caused by thermal cycles propagate more easily, leading to the early occurrence of heat checking.
Particularly in die casting dies, managing the tempering conditions is essential. Performing multiple tempering cycles can reduce stress within the metallic structure and is expected to enhance durability against thermal fatigue. Therefore, before reviewing the die material, it is indispensable to check the steel's heat treatment conditions, hardness, number of tempering cycles, and the structural state after processing.
Microstructure Evaluation and the Selection of BGH Premium Hot Work Tool Steels
If the early occurrence of heat checking does not improve even after reviewing cooling and heat treatment conditions, it becomes necessary to evaluate the quality and structural state of the die material itself. The cleanliness and structural uniformity of tool steel influence its susceptibility to cracking. Materials with high amounts of non-metallic inclusions or structural variance are prone to stress concentration, which can act as initiation points for cracks.
Premium hot work tool steels from BGH, Germany, such as "BGH Diecast One" and "Tough One," utilize ESR (Electroslag Remelting) technology to reduce non-metallic inclusions and impurities, achieving a highly clean and uniform microstructure. This results in high toughness and a stable structure, contributing to a reduced risk of heat checking and cracking.
Integrated Special Steel and Die Maintenance Solutions Provided by STOREMATE
STOREMATE CO., LTD. provides integrated solutions ranging from special steel selection to die maintenance for maintenance challenges faced by die shops and foundry sites in Thailand. As an official distributor for BGH, Germany, STOREMATE supports steel selection tailored to applications and operating conditions, while also offering a one-stop service that includes vacuum heat treatment, microstructure inspection, and metallurgical evaluation.
Additionally, through structural inspections at their in-house metallurgical testing lab, it is possible to objectively evaluate the condition of die materials. By comprehensively verifying operating conditions, heat treatment conditions, and material properties, they help organize the causes of heat checking, contributing to extended die life and total cost reduction. Furthermore, as a board member company of the Thai Diecasting Association, they offer technical proposals based on joint experimental data with institutions such as Chulalongkorn University.
Frequently Asked Questions (FAQ)
Q: Among the factors in cooling systems, what has the greatest impact on heat checking?
A: Non-uniformity of the die surface temperature caused by clogged cooling lines or insufficient cooling water volume. When localized temperature differences become large, thermal stress concentrates, accelerating crack initiation and propagation.
Q: Why are ESR-treated steels highly resistant to crack initiation?
A: Because the ESR process reduces non-metallic inclusions and impurities, resulting in a highly clean and uniform microstructure. By suppressing structural defects that act as starting points for stress concentration, it contributes to reducing the risk of crack generation.
Q: Are there any maintenance methods other than changing the steel grade that contribute to extending die life?
A: It is crucial to detect microscopic heat cracks at an early stage and repair them appropriately. By using the high-precision laser welder "T-LASER" provided by STOREMATE, built-up repair welding of microscopic cracks is possible, enabling preventive maintenance before cracks progress deeply.
Key Terms for Understanding This Article
- Heat Check: Fine, cobweb-like cracks that develop on the die surface due to rapid thermal cycling. It is one of the representative types of damage affecting die casting die lifespan and product quality.
- ESR: Stands for Electroslag Remelting. A remelting technology used to reduce non-metallic inclusions and impurities in special steel, thereby increasing structural uniformity and toughness.
- One-stop Service: A service structure that consistently manages and provides everything from steel procurement, heat treatment, machining, and surface treatment to metallurgical evaluation.
- T-LASER: A high-precision laser welding machine used for built-up repair welding of precision dies. It can be utilized for early-stage microscopic heat crack repairs and general die maintenance.
※If you are facing challenges regarding extending die life, reviewing heat treatment conditions, or selecting special steel, please feel free to contact STOREMATE CO., LTD.
