Auto Hand Changer ／Payload 3-150 kg／Faster Tool Changes, Greater Flexibility for Automation Systems

KOGANEI (THAILAND) CO., LTD. presents the MJC Series Auto Hand Changer for robots and automated machinery, enabling fast, precise hand/tool changes that support applications ranging from light-duty to heavy-duty work.

The MJC Series is designed to be compact and lightweight, supporting both pneumatic and electrical signal connections to the Tool Side — ideal for production lines that need greater flexibility, fewer limitations on tool changes, and improved automation system performance.

Table of Contents

• Key Features That Enhance Automation System Performance
• Anti-drop Mechanism for Emergency Situations
• Specifications and Payload Capacity
• Pneumatic and Electrical Connections
• Structural Materials and Mounting Options
• Frequently Asked Questions (FAQ)

Key Features That Enhance Automation System Performance

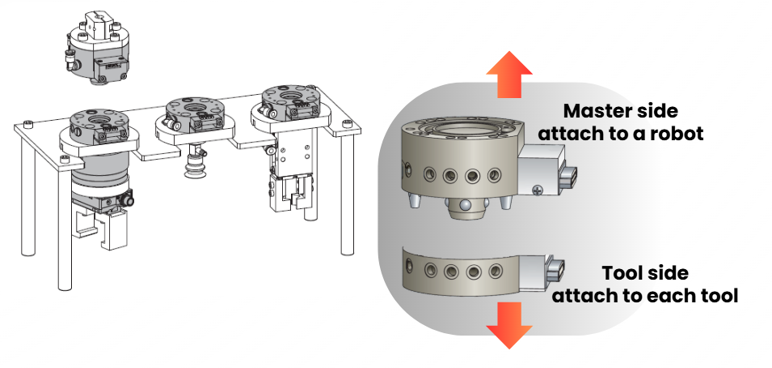

The MJC Series Auto Hand Changer allows robots and automated machinery to change hands or tools automatically. It is well-suited for production lines that frequently change workpieces, parts, or robot end-effectors.

• Automatic Hand/Tool Changing: Reduces end-effector changeover steps and increases flexibility for automation systems
• Supports Payload of 3-150 kg: Available in 6 models — MJC3, MJC10, MJC20, MJC60, MJC100, and MJC150 — covering everything from light-duty to heavy-duty applications
• Compact and Lightweight Structure: Enables more agile robot movement and supports more efficient automation system operation
• Supports Both Pneumatic and Electrical Systems: Can transmit air and electrical signals to the Tool Side, allowing end-effectors to operate continuously

Anti-drop Mechanism for Emergency Situations

The safety of workpieces, tools, and machinery is critical. The MJC Series comes equipped with an Anti-drop mechanism that maintains the locked state between the Master Side and Tool Side.

In the event that air supply is cut off or a power outage occurs while the unit is in the coupled state, the internal mechanism prevents the Tool Side from disengaging from the Master Side, reducing the risk of damage to tools, workpieces, and the production system.

Specifications and Payload Capacity

To accommodate a wide range of applications, the MJC Series offers multiple models based on payload rating, as follows:

※For further details, please download the PDF attached to this article, or fill out the form below to inquire.

Pneumatic and Electrical Connections

The MJC Series supports transmission of both air and electrical signals to the Tool Side, enabling hands or robot end-effectors to operate efficiently.

• Pneumatic Ports by Model: Supports 4-13 pneumatic ports, with the number and size of ports varying by the selected model
• Various Electrical Interfaces: Options include Solder Terminals, Solder Terminals with Cables, Mini-connectors, D-sub Connector, Non-contact Terminals, and Round Connectors, with supported models varying by connector type

Structural Materials and Mounting Options

• Durable Materials for Industrial Use: The Master Side is made of Aluminum Alloy with Electroless Nickel Plating for durability
• Supports High-Load Applications: For the MJC60, MJC100, and MJC150 models, the Tool Plate is made of heat-treated Stainless Steel to withstand applications requiring higher strength
• Convenient Robot Installation: A Robot Adapter is available for mounting the Auto Hand Changer MJC to robots, referencing ISO (JIS) standards to facilitate installation with various robot systems

Frequently Asked Questions (FAQ)

Q: What is the payload capacity range of the MJC Series?
A: The MJC Series offers 6 models supporting payloads of 3 kg, 10 kg, 20 kg, 60 kg, 100 kg, and 150 kg.

Q: Can the MJC3 model be fitted with a D-sub Connector?
A: The MJC3 model does not support a D-sub Connector. It can instead use Solder Terminals, Solder Terminals with Cables, or Mini-connectors.

Q: Does the MJC Series have a mechanism to prevent the Tool Side from dropping?
A: Yes, it is equipped with an Anti-drop mechanism that maintains the locked state in the event of air supply cutoff or power outage while the unit is in the coupled state.

Interested in the Auto Hand Changer MJC Series?

To add flexibility to your robots, achieve faster tool changes, and improve your automation system's performance, download the PDF attached to this article, or fill out the form below to request more information from KOGANEI (THAILAND) CO., LTD.
