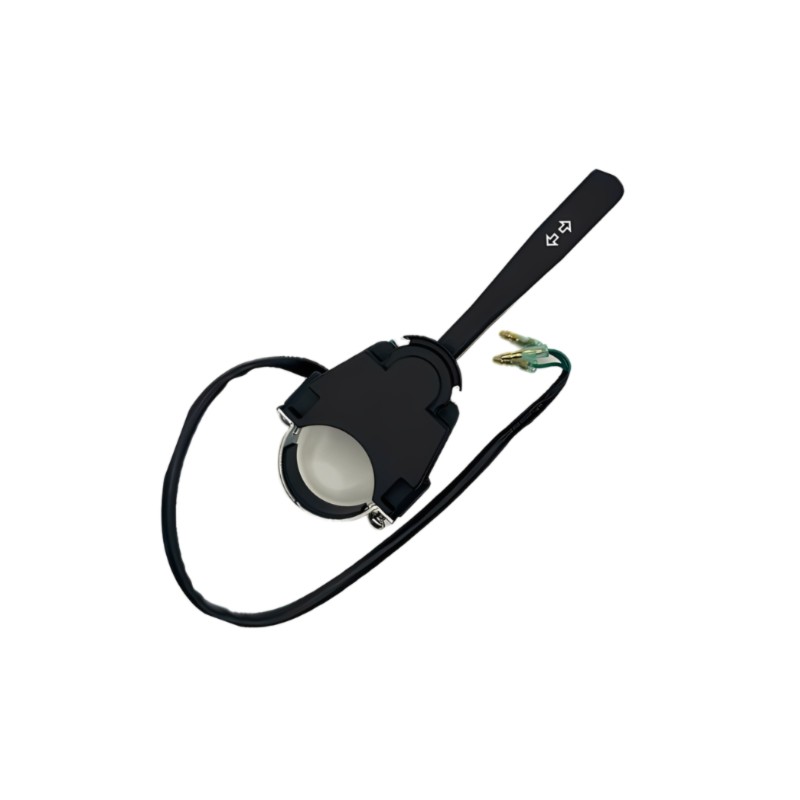

High-load lever switch | 3-position, waterproof specification, for switching and operation in industrial machinery

Matsuda Denki (Thailand) Co., Ltd. manufactures high-load lever switches. Our products feature a 3-position design and standard waterproof capabilities, making them exceptionally well-suited for the harsh operating environments of construction and agricultural machinery.

Table of Contents

• Automotive-Grade Reliability Extended to Industrial Machinery
• Local Procurement Benefits in Thailand
• Technical Data
• Primary Applications and Customization Options
• Frequently Asked Questions (FAQ)

Automotive-Grade Reliability Extended to Industrial Machinery

The control components of construction and agricultural machinery must withstand severe operating conditions, including mud, dust, high vibrations, and frequent repetitive switching. Utilizing standard commercial switches carries a risk of premature contact wear or mechanical fatigue, leading to unexpected malfunctions or failure.

Matsuda Denki (Thailand) applies its extensive know-how in manufacturing automotive switches which must satisfy rigorous quality criteria directly to our industrial machinery product lines. This lever switch has successfully passed durability testing of up to 100,000 cycles, ensuring that both electrical conductivity and tactile response remain stable over long-term use.

Selecting this high-durability product significantly reduces maintenance frequency throughout the equipment's lifespan. Consequently, machinery downtime for spare part replacement is minimized, maximizing overall operational efficiency for the end-user.

Local Procurement Benefits in Thailand

For the manufacturing or maintenance of construction and industrial machinery within Thailand, importing specialized switches from Japan often results in long production and delivery lead times, alongside increased inventory management costs. Furthermore, distance and time-zone differences can pose significant barriers to technical consultations when specifications need modification or issues arise.

Our manufacturing base is strategically located in the Amata City Rayong Industrial Estate, enabling us to deliver Japan-quality standard switches directly within Thailand. We have Japanese staff stationed on-site to facilitate coordination and maintain quality control under the exact same benchmarks as in Japan. Establishing a localized procurement network within Thailand drastically reduces logistics expenses and import lead times, while allowing for a rapid response to production schedule adjustments due to the advantages of domestic shipping.

Technical Data

Rating: 12V 5A / 24V 3A
Number of Circuits: 1 Circuit
Durability: 100,000 cycles
Operating Temperature Range: -30°C to +80°C
Travel Angle: 18° (N → L, N → R)
Operating Force: 7N
Waterproof Performance: Standard waterproofing
Installation Method: Shaft-mounting via clamps and screws
Connection Type: Lead wire type

Primary Applications and Customization Options

To enhance visibility or installation convenience based on specific operational environments, our switches support the following applications and customization options:

• Primary Application Examples

Construction and Agricultural Machinery: Turn signal switches

Industrial Machinery: Operational mode switching toggles

• Customization Options

Marking Patterns: Operational symbols or company logos can be printed onto the switch surface using precision pad printing. Our advanced printing technology guarantees sharp, clear symbol rendition even on curved or textured surfaces.

Frequently Asked Questions (FAQ)

Q: What is the typical delivery timeframe within Thailand?
A: Because we ship directly from our Rayong factory, the exact lead time depends on the order lot size and current stock status. Please contact us directly for detailed scheduling.

Q: Do you accept orders for single prototypes or 1-piece sample production?
A: Our operations are fundamentally structured for high-volume mass production; therefore, we generally do not accommodate single-piece prototyping.

Q: Is there a risk of the surface markings wearing off over time?
A: We utilize high-quality pad printing technology that is proven in the automotive industry. To ensure long-lasting symbol visibility, we conduct internal durability and environmental temperature testing within our facility.

※For more details, please download the attached document or fill out the form below to submit an inquiry.
