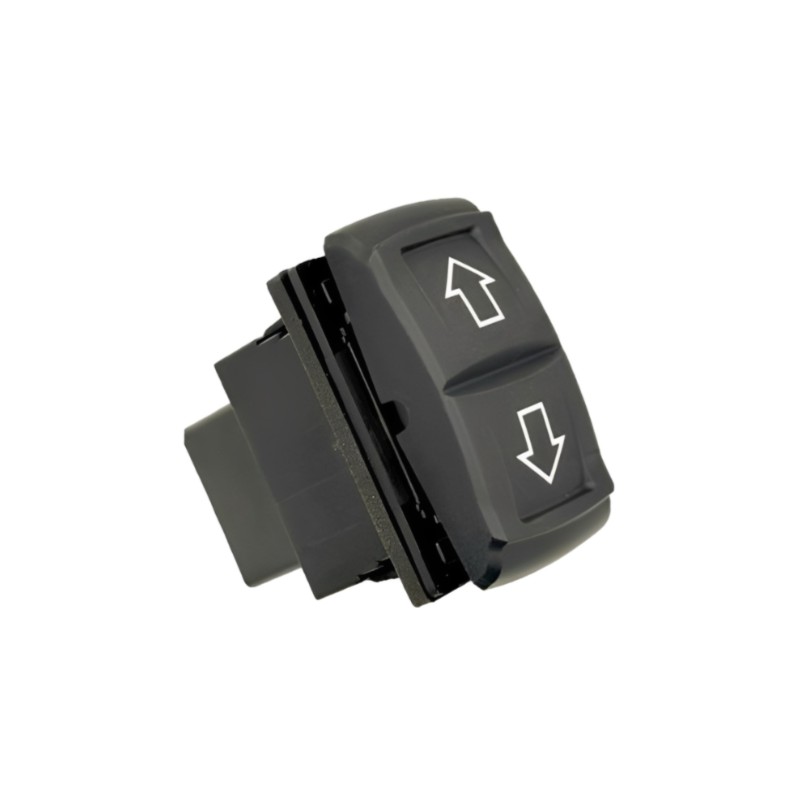

High-load rocker switch | rated for 24V / 5A, designed for harsh environments in construction and agricultural machinery

Matsuda Denki (Thailand) Co., Ltd. provides contract manufacturing and supply services for high-load rocker switches designed specifically for construction and agricultural machinery. These switches feature a rated capacity of 24V 5A and panel-surface waterproofing, fully supporting high-volume mass production.

Table of Contents

• The Critical Need for Environmentally Durable Switches in Heavy Machinery
• Product Specifications
• Technical Features
• Tailored Customization Services
• Frequently Asked Questions (FAQ)

The Critical Need for Environmentally Durable Switches in Heavy Machinery

Inside the operator cabs of construction or agricultural machinery working outdoors or on unpaved terrain, switches are constantly exposed to mud, dust, and water splashes. While standard industrial switches frequently suffer from contact corrosion or malfunctions in these settings, Matsuda Denki (Thailand) supplies rocker switches engineered with robust panel-surface waterproofing to ensure stable electrical conductivity and reliable operation under the harshest conditions.

Furthermore, heavy equipment and agricultural machinery often generate high electrical currents during startup or intensive operations, placing a severe load on switch contact points. Our products reliably support a rated load of 24V 5A, allowing for circuit designs that minimize reliance on external relays. This successfully reduces the total component count in the system and lowers the overall risk of electrical failure.

To withstand the high humidity and elevated temperatures characteristic of Thailand and Southeast Asia, as well as operations in extremely cold regions, we guarantee an operational durability of 100,000 cycles across a wide temperature spectrum from -40°C to +85°C. Delivering long-term, unwavering performance effectively prevents machinery downtime and slashes maintenance expenses.

Product Specifications

Rating: 24V, 5A / 5V, 10mA
Stroke Angle: 9° (N → Full/Lock)
Operating Force: 7N
Number of Circuits: 1 Circuit / 2 Circuits
Durability: 100,000 cycles
Operating Temperature Range: -40°C to +85°C
Waterproof Performance: Panel-surface waterproofing
Installation Method: Snap-in panel mounting with resin claws
Customization: 2-point illumination, custom icon printing

Technical Features

3-Position Layout Support: Available in both standard maintained rocker styles and momentary (auto-return) configurations. A 2-position layout is also supported to match diverse application needs.
Enhanced Visibility: Capable of housing up to 2 internal illumination points (LEDs), ensuring mistake-free operation during nighttime tasks or in low-light environments.
Streamlined Installation Structure: Features a snap-in panel mounting system using plastic claws, significantly reducing steps and time during the line assembly process.

Tailored Customization Services

Surface designs can be fully customized to meet unique customer specifications. Clients can choose between spray painting or precision laser etching for marking indications to build a control panel that offers clear visibility and outstanding wear resistance. All of these processes are executed under our comprehensive internal management system at our factory in Thailand.

For quality management, we enforce stringent standards accumulated from our automotive manufacturing background (compliant with IATF 16949). With Japanese engineers permanently stationed on-site, we seamlessly merge design expertise from our Japan headquarters with local assembly workflows, ensuring that every product manufactured in Thailand satisfies the exact same quality benchmarks as those made in Japan.

Frequently Asked Questions (FAQ)

Q: Can we specify a completely custom design for the markings?
A: Yes, you can. We support custom icons or lettering using spray painting or precision laser etching. Once you provide the design layout or drafts, our technical team at the Thailand base will immediately evaluate production feasibility.

Q: Is a 2-position specification (simple ON-OFF) available?
A: Yes. While our standard mechanism is designed for 3-position configurations, we have extensive experience supplying 2-position variations by modifying the internal component geometry.

Q: Do you support exporting products outside of Thailand?
A: Our operations are primarily focused on domestic delivery within Thailand. However, regarding exports to the ASEAN region or other international areas, please contact us directly so we can evaluate your requirements on a case-by-case basis.

※For more details, please download the attached document or fill out the form below to submit an inquiry.
