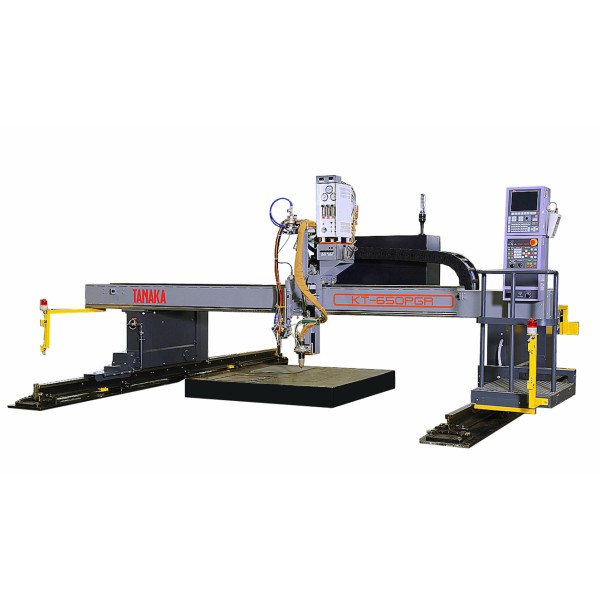

KT-650PGR Gas & Plasma Combined CNC Cutting Machine Thailand

High-speed and high-quality cutting with plasma, and multiple torch and thick plate cutting with gas are all possible with this one machine!
High-speed cutting, which is a characteristic of plasma cutting, can be used to cut high-mix low-volume products in a short period of time. Gas cutting is used for thick plates that cannot be cut with plasma. In addition, a large number of products with the same shape can be efficiently cut by gas cutting with multiple torches. KT-650PGR will respond to various cutting applications.
【 feature 】
Equipped with NC device Robo Q-15
In-house manufactured NC unit specializing in gas cutting and plasma cutting applications, featuring easy operability. Supports USB input of NC data and wired/wireless LAN input.
*A FANUC NC unit can be installed upon request (optional)
Can be equipped with various plasma cutting devices
We will install the optimum plasma cutting equipment according to the steel type and cutting plate thickness.
・In-house Pegasus 500 series plasma cutting equipment
・Hypertherm HPR-XD series plasma cutting equipment
Stable high speed operation
The stable high-speed operation of the double-sided rack & pinion drive maximizes the advantages of plasma cutting.
[Airframe specifications]
Effective cutting width (mm) 3,000 to 5,000
Rail span (mm) 4,000 to 6,000
Effective cutting length Rail total length -2,500mm
Rail length 9,600 mm (standard) can be extended in 1,200 mm increments
Rail size 37kg/m or 50kg/m rail
NC controller Standard: RNQ-15
　　　　　　　　　　　　　Optional: FANUC Series 32i
Plasma cutting device *¹ Standard: HPR260XD Oxygen plasma cutting device
Options: Other HPR-XD series, Pegasus series
Gas cutting device HC-326 blowpipe cutting (up to 4 units)
Cuttable materials: SS400, SM, SN, material, steel for bass, wash material, zinc material
Thickness that can be cut*¹
(SS400 mild steel) When gas cutting: t6 to t100mm
　　　　　　　　　　　During plasma cutting: t6 to t32mm
Speed specification: Machining feed rate: 1 to 10,000mm/min
　　　　　　　　　　　Rapid traverse speed: 24,000mm/min
Manual rapid traverse speed　　　　X-axis: 24,000mm/min
　　　　　　　　 Y-axis: 24,000mm/min
*¹ The cutting specifications of the plasma cutting device differ depending on the plasma cutting device selected.
【 standard equipment 】
Arc height tracing function (plasma cutting)
Initial height sensing function (plasma cutting)
Plasma torch collision mitigation function (plasma cutting)
Coordinate rotation function (plasma cutting)
Cutting oxygen individual selection function (gas cutting)
Automatic lifting device selection function (gas cutting), etc.
[Optional specifications]
Stainless steel cutting function
Z marking device
Electrode consumption detection function
Separate type dust collector
air compressor
Positioning camera & monitor, etc.
*For detailed specifications, please contact our branch or sales office near you.
