Semi-Automatic Switchover Regulator ｜ Continuous Gas Supply to Reduce Downtime in Industrial Operations
Key Takeaways
• Semi-Automatic Switchover Regulator automatically switches the gas supply when the primary cylinder is depleted
• Maintains stable pressure and flow rate, reducing downtime in industrial operations
• Supports multiple gases such as Oxygen, Argon, Helium, and Nitrogen
• Allows gas cylinder replacement without interrupting the production process
ーーーーーーーーーーーーーーーーーーーーーーーーーーーーーーー
In industrial processes that require a continuous gas supply, unexpected stoppages caused by empty gas cylinders can result in losses in quality, time, and cost. The Semi-Automatic Switchover Regulator was developed to directly address this issue by automatically switching the gas supply from the primary cylinder to the reserve cylinder, ensuring uninterrupted operation.
From real on-site experience, many factories are forced to stop welding work or halt production lines due to sudden pressure drops. A switchover system enables operators to continue gas usage seamlessly while planning cylinder replacement without urgency, reducing risks related to safety and work quality.
The operating principle of a Semi-Automatic Switchover Regulator is to supply gas from the primary cylinder first. When the primary cylinder pressure drops to a preset level, the system automatically switches to the reserve cylinder while maintaining stable outlet pressure during the transition. This allows operators to replace the empty cylinder without affecting production.

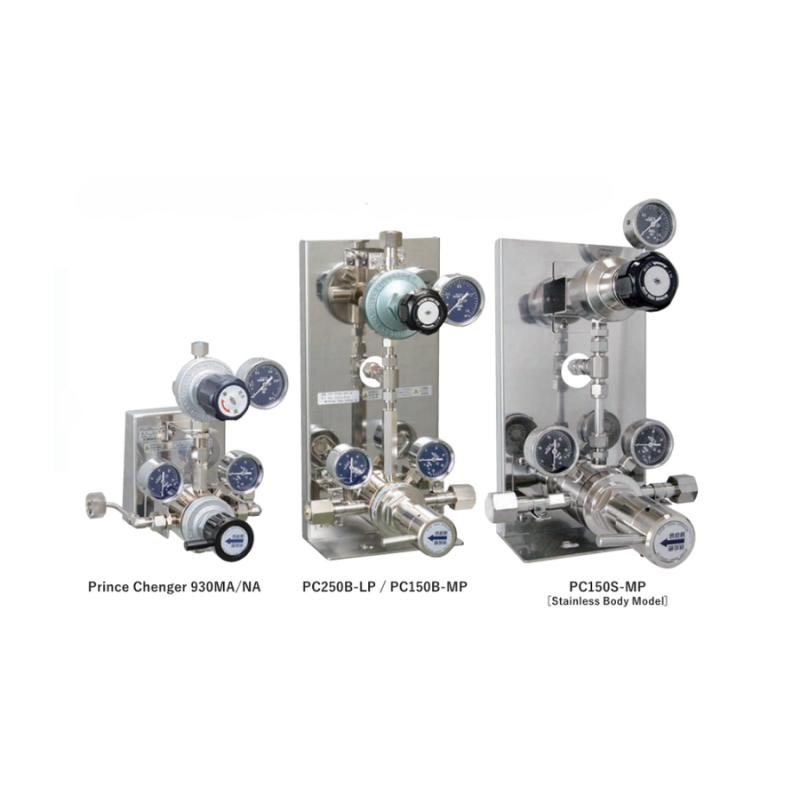

🔷 Semi-Automatic Switchover Regulator Models
• 930MA/NA
Gas: Oxygen / Argon / Helium / Nitrogen
Inlet pressure gauge: 25 MPa (Max. inlet pressure 15 MPa)
Outlet pressure gauge: 1 MPa
Maximum working pressure: 0.5 MPa
Flow rate: 120 NL/min (P2 = 0.3 MPa)
Weight: 4.6 kg
• PC250B-LP
Gas: Oxygen / Argon / Helium / Nitrogen
Inlet pressure gauge: 25 MPa (Max. inlet pressure 15 MPa)
Outlet pressure gauge: 1 MPa
Maximum working pressure: 0.5 MPa
Flow rate: 250 NL/min (P2 = 0.3 MPa)
Weight: 7.2 kg
• PC150B-MP
Gas: Oxygen / Argon / Helium / Nitrogen
Inlet pressure gauge: 25 MPa (Max. inlet pressure 15 MPa)
Outlet pressure gauge: 1.6 MPa
Maximum working pressure: 0.7 MPa
Flow rate: 150 NL/min (P2 = 0.5 MPa)
Weight: 7.2 kg
• PC150S-MP
Gas: Oxygen / Argon / Helium / Nitrogen
Inlet pressure gauge: 25 MPa (Max. inlet pressure 15 MPa)
Outlet pressure gauge: 1.5 MPa
Maximum working pressure: 0.7 MPa
Flow rate: 150 NL/min (P2 = 0.5 MPa)
Weight: 7.1 kg
In practical applications, Semi-Automatic Switchover Regulators are widely used in welding systems, inert gas production lines, factories aiming to reduce downtime and enhance safety, and process operations where interruptions are not acceptable. Selecting a model that matches the gas type and required flow rate is a key factor in overall system performance.
Summary
The Semi-Automatic Switchover Regulator is a solution that ensures continuous gas supply in industrial applications, minimizes unnecessary downtime, and enhances confidence in safety and work quality. When the appropriate model is selected, the system can significantly improve production efficiency.
ーーーーーーーーーーーーーーーーーーーーーーーーー
❓ FAQ
Q: How does Semi-Automatic differ from Manual systems?
A: A Semi-Automatic system automatically switches cylinders when the primary cylinder is empty, without stopping operations for cylinder replacement.
Q: What types of applications is it suitable for?
A: It is suitable for welding, process operations, and gas supply systems that require continuous operation.
Q: What gases are supported?
A: Oxygen, Argon, Helium, and Nitrogen, depending on the model.
📚 Glossary (Key Terms)
• Semi-Automatic Switchover Regulator: A pressure regulator that automatically switches the gas supply from a primary cylinder to a reserve cylinder
• Downtime: The period during which a production process is stopped
• Inert Gas: Gases such as Helium and Nitrogen used in industrial processes
