SmartMini Compressor (SMP) Compact Air Compressor / Installation Footprint Smaller Than A5 Paper / Noise Level Below 50 dB and Oil-Free Operation

KOGANEI (THAILAND) CO., LTD. introduces the SmartMini Compressor (SMP), a compact air compressor designed to supply positive pressure and vacuum for robot hands, vacuum pads, and autonomous mobile robots (AMRs).

The SMP features a compact and lightweight design, low operating noise, and an oil-free system. It is ideal for machinery and automation systems that require a compressed air or vacuum source in areas with limited installation space.

Table of Contents

• Key Features of the SmartMini Compressor (SMP)
• Positive Pressure and Negative Pressure Models
• Technical Specifications
• Installation, Control System, and Important Considerations
• Frequently Asked Questions (FAQ)

Key Features of the SmartMini Compressor (SMP)

The SMP is designed as a compact compressed air or vacuum source for automation systems. It is easy to install and operate, making it suitable for applications where installation space and operating noise are important considerations.

• Compact, lightweight, and easy to install
  The horizontal model requires an installation area of only 144 × 190 mm, which is smaller than an A5 sheet of paper. The unit weighs only 2.4 kg, making it suitable for installation in machinery, robots, and AMRs.
• Noise level below 50 dB
  The low operating noise helps reduce noise in the workplace, making the unit suitable for laboratories, production lines, and other areas where a quieter working environment is required.
• Oil-free system for easy maintenance
  The pump system does not use lubricating oil, helping reduce the risk of oil mist being generated by the unit and lowering maintenance requirements.
• Easy plug-and-play operation
  Simply supply power to the unit, and it will automatically generate compressed air or vacuum and control its operation according to the preset values.

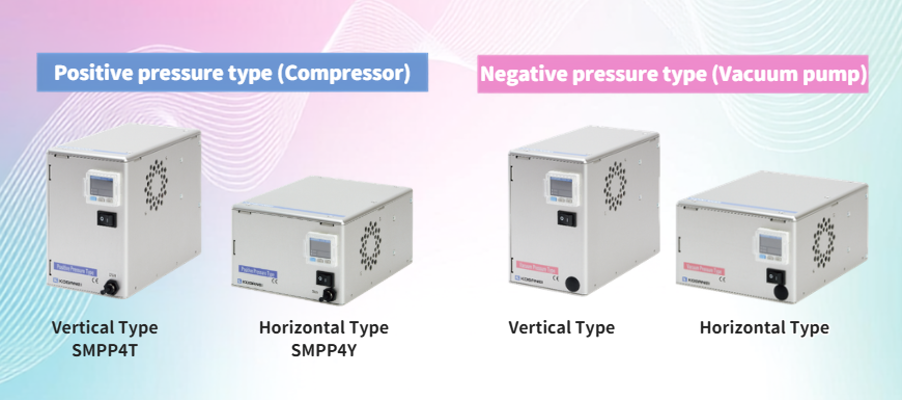

Positive Pressure and Negative Pressure Models

The SmartMini Compressor is available as both a positive pressure model for supplying compressed air and a negative pressure model for generating vacuum. Horizontal and vertical configurations are available to suit different installation spaces.

Positive Pressure Type / Compressor
For supplying compressed air to pneumatic equipment:

• SMPP4Y: Horizontal Type
• SMPP4T: Vertical Type

Negative Pressure Type / Vacuum Pump
For generating vacuum in workpiece gripping or suction systems:

• SMPV4Y: Horizontal Type
• SMPV4T: Vertical Type

※ For more details, please download the PDF attached to this article or complete the inquiry form below.

Technical Specifications

Installation, Control System, and Important Considerations

• Multiple installation methods to suit different applications
  The unit supports installation using rubber feet, bottom mounting, or an L-shaped mounting bracket.
• Supports 24 VDC and an optional AC adapter
  The standard input voltage is 24 VDC. An optional AC adapter is available for use with a 100–240 VAC power supply.
• Easy connection to control systems
  The unit is equipped with an I/O interface for stopping and restarting operation, monitoring pressure status, and providing error notifications.
• Monitoring through a communication port
  The communication port allows users to check error history, I/O status, total operating time, and motor operating time, helping support maintenance planning.
• Important operating considerations
  The positive pressure model does not include an internal filter or pressure-regulating device. A water separator, filter, and regulator should therefore be installed as appropriate for the application. For the negative pressure model, a filter should be installed on the suction side to prevent dust and contaminants from entering the pump.

Frequently Asked Questions (FAQ)

Q: Does the SmartMini Compressor (SMP) require a separate drive unit?
A: No. The SMP is a complete unit with an integrated motor and control system. Simply supply power to the unit, and it can generate compressed air or vacuum.

Q: What applications is the SMP suitable for?

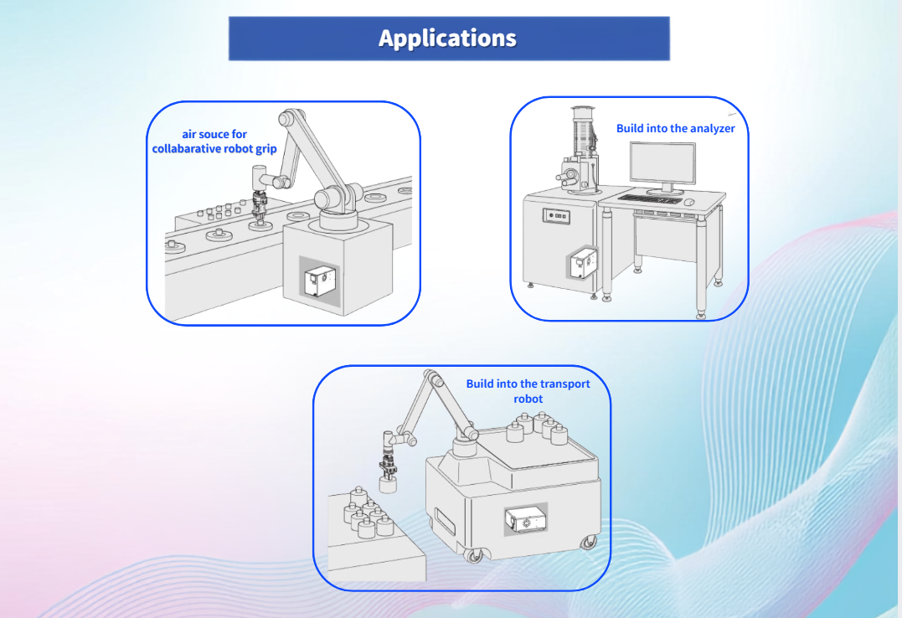

A: It is suitable for robot hands, vacuum pads, AMRs, compact robots, laboratories, and machinery that require a compact, low-noise compressed air or vacuum source that can be installed in a limited space.

Q: Is it necessary to install additional filters or accessories?
A: Additional equipment is recommended according to the application. A water separator, filter, and regulator should be installed with the positive pressure model. For the negative pressure model, a filter should be installed on the suction side to help prevent contaminants from entering the pump.

Interested in the SmartMini Compressor (SMP)?

For applications that require a compact compressed air or vacuum source for robot hands, vacuum pads, or AMRs, the SMP provides easy installation, low operating noise, and space-saving performance.

Please download the PDF attached to this article or complete the inquiry form below to request more information from KOGANEI (THAILAND) CO., LTD.
