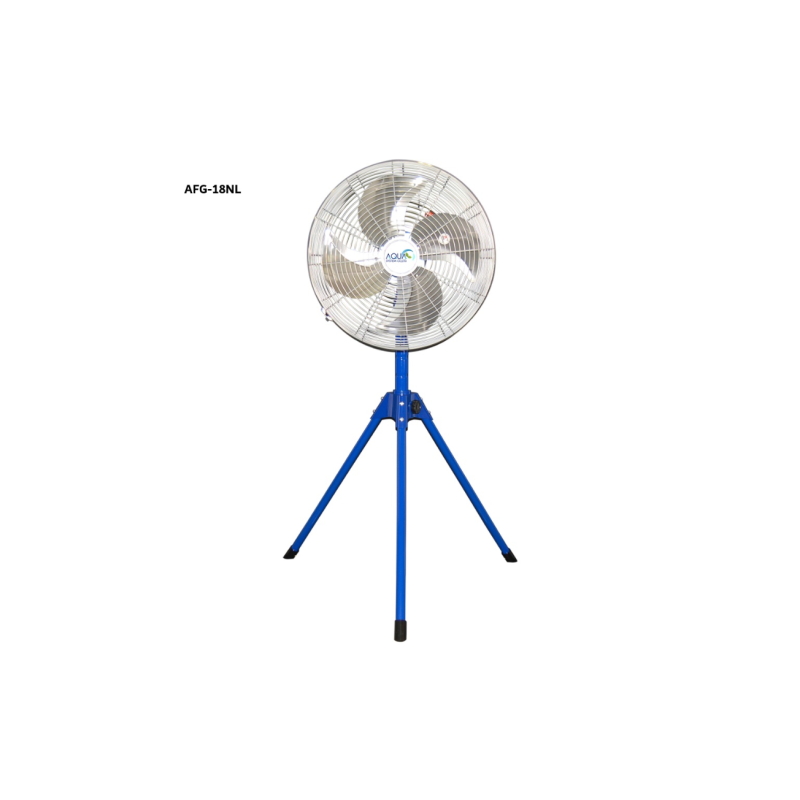

Oil-free stand-type industrial fan Air Fan AFG-18NL
This air-powered industrial fan is useful for warehouse ventilation, heatstroke prevention, and as a circulator. It features a long-life motor capable of continuous operation, and since it is air-powered, it can be used in explosion-proof areas.
The oil-free design eliminates the need for a lubricator and oil, making it energy efficient.
Model Number: AFG-18NL
Type: Stand-type
Swivel function (left/right): 70°
Angle adjustment (up/down): 7 stages (80°)
Fan diameter (mm): 450
Compressor horsepower: 3
Operating air pressure (MPa): 0.4–0.6
Air consumption (m³/min): 0.33
Maximum airflow (m³/min): 250
Maximum rotation speed (rpm): 1,800
Air connection port: Air coupler plug (male)
Material (body/blades): Steel/AL
Weight (kg): 7.5
Stand type with stable construction that is resistant to tipping.
Equipped with swivel function and angle adjustment.
No lubricator required, no oil absorption necessary.
Can be used as a circulator with angle adjustment.
Continuous operation possible with long service life.
Proven track record of use in explosion-proof areas.
Rotation speed adjustable with air valve throttle.
Silencer and air filter included as standard.
Environmental improvement → Heatstroke countermeasures
Cost reduction → Efficiency improvement in drying work
Safety assurance → Reduction of oil absorption work
For ventilation, drying, and air circulation in areas where oil is undesirable, such as paint booths.
For air circulation in high-temperature locations and drying rooms.
Can be used in high-temperature, high-humidity environments (temperature: 0 to 60 degrees Celsius).
For use in areas where open flames are prohibited, such as paint booths.
For ventilation in areas where chemical odors accumulate.
For cooling and drying cast iron and aluminum die-cast products.
Can also be used for product drying.
Promotes ventilation by expelling air outdoors.
《Application Examples》
Chemical plant factories, painting factories, automotive transport ships, shipyards
Tunnel construction, LP gas station underground tank ventilation, explosion-proof fan substitute
Ships, deck manholes, etc.
