Taping Service in Thailand | Step-by-Step SMT & IC Packaging Process

Explore all key steps in a standardized taping service, from pre-inspection to final quality check. Perfect for SMT accuracy.
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
1. Pre-Taping Inspection and Sorting
- Separate defective parts
- Check polarity and orientation
- Ensure clean surfaces
- Inspect leads and terminals
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

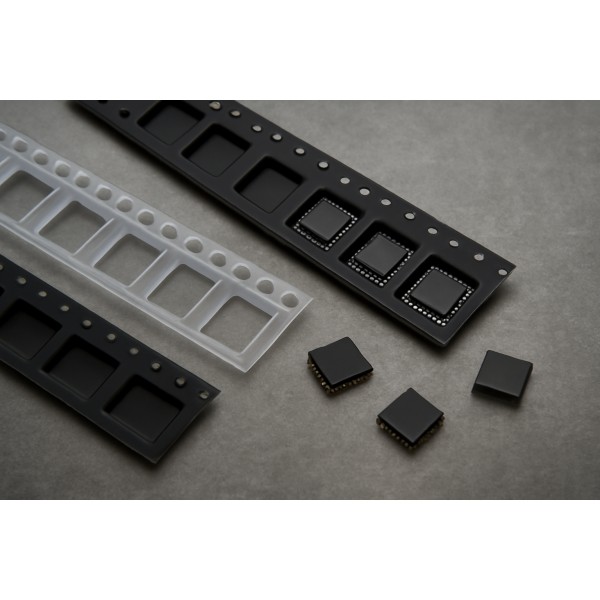

2. Carrier Tape Preparation
- Choose correct pocket size
- Confirm pitch accuracy
- Match material with machine
- Ensure proper fit to prevent shift
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
3. Orientation Setting
- Follow datasheets and customer spec
- Use machine orientation chart
- Avoid incorrect placement
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
4. Feed & Placement Control
- Adjust speed and pressure
- Use vibration for alignment
- Avoid damage to fragile components
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
5. Applying Cover Tape
- Use correct heat and force
- Avoid bubbles and delamination
- Maintain peel strength 0.1–1.0N
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
6. Reeling & Labeling
- Align parts during winding
- Confirm quantity accuracy
- Add label with Part No., Lot, Date, Qty
- Perform reverse-feed test
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
7. Final Inspection
- Verify orientation
- Check cleanliness and damage
- Confirm count and issue report
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
8. THAI ISIX Taping Service Benefits
- In-house carrier tape production
- Custom pockets available
- Full ESD and cleanroom compliance
- Detailed QA reports
- Urgent delivery options
For more details, contact THAI ISIX or download our product PDF.
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
