Product Features

Electric Gripper with 52mm Wide Stroke Capability

The RG52-050 is a 2-finger electric parallel gripper that can be attached to and used with FAIRINO collaborative robots.

It supports a maximum stroke of 52mm, and the gripping position, operating speed, and gripping force can be adjusted to suit the workpiece.

It is suitable for automation tasks such as pick-and-place of parts of different sizes, loading workpieces into processing machines, assembly, and sorting.

It also supports gripping state feedback, drop detection, and grip retention during power outages, ensuring stable workpiece transfer.

Feature 1: Max 52mm Wide Stroke

The opening and closing width of the fingers can be adjusted within the range of 0 to 52mm.

It can easily handle multiple workpieces of different sizes, reducing the effort of replacing the gripper body every time the product type changes.

It is suitable for high-mix, low-volume production and transfer processes involving various parts.

Feature 2: Adjustable Gripping Position, Speed, and Force

The opening/closing position of the fingers, operating speed, and gripping force can be set according to the workpiece.

Gripping conditions can be set to match the object, from stable transfer of metal parts to workpieces sensitive to deformation or scratches, such as resin parts.

Feature 3: Maintains Grip During Power Outage

The RG52-050 supports a function that maintains the gripping state when power is lost.

Even if power is interrupted during transfer, the risk of the workpiece immediately dropping can be reduced.

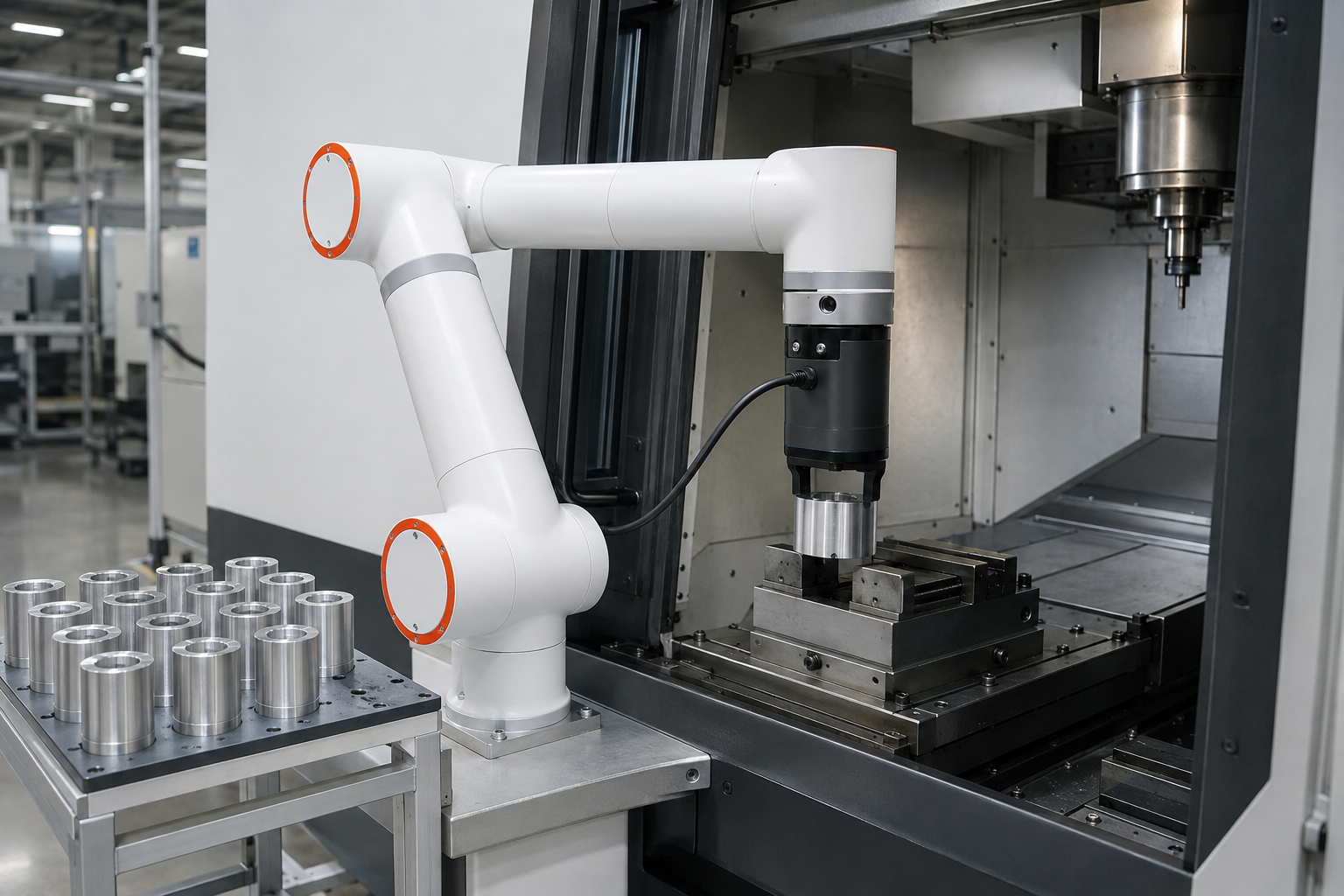

It is also suitable for applications where workpieces are lifted and transferred, such as loading into and unloading from processing machines.

※Actual safety varies depending on workpiece weight, gripping direction, finger shape, friction conditions, etc.

Main Applications

• Part pick-and-place
• Loading and unloading workpieces from CNC machining centers
• Transfer of parts with different sizes
• Part holding in assembly processes
• Workpiece feeding to inspection equipment
• Part alignment and sorting
• Boxing and packaging
• Transfer of medical and bio-related parts

Specifications

We will check if it can grip your actual workpiece

We will confirm the workpiece size, weight, material, gripping position, etc., and advise on the suitability of the RG52-050 and the required finger shape.

Please also consult us regarding the overall equipment configuration, such as combination with FAIRINO collaborative robots or workpiece loading into processing machines.

From simple movements to complex automation, we also support program creation

FAIRINO collaborative robots can be set up for basic transfer and pick-and-place operations through teaching.

On the other hand, complex automation, such as performing multiple processes continuously, switching operations based on the workpiece, or linking with PLCs, sensors, and processing machines, requires specialized program creation.

SHODENSHA (Thailand) supports customers from program creation tailored to work content, to equipment integration and startup, enabling implementation even without specialized programming knowledge.

You can consult us from the stage of "I want to entrust this task to a robot."

It's not a problem if the implementation method hasn't been decided yet. Please tell us about the tasks you wish to automate.
