Ultra-strong Magnet Drum Conveyor M10 Thailand, Bangkok

This is a high-power magnetic drum conveyor suitable for processing magnetic cutting chips. It is also compatible with castings with weak magnetism and can be used with water-soluble coolants.It supports high-pressure pumps up to 3Mpa without secondary treatment.Filtration accuracy: 10μm, 90% or mor ...

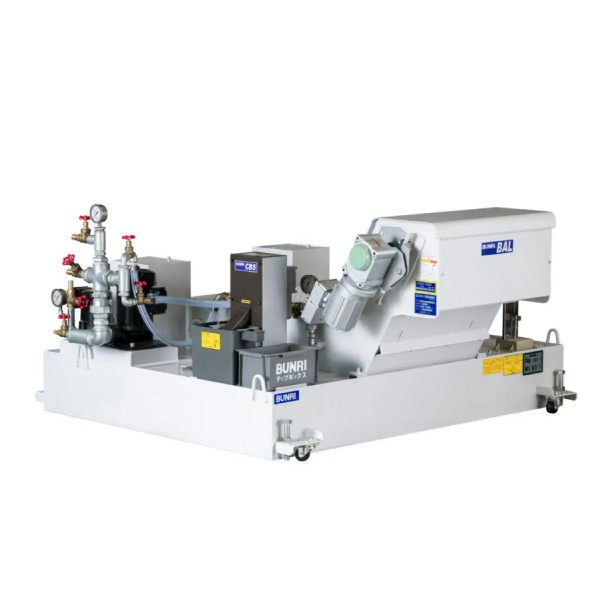

Precision Filtration Filter Conveyor BAL Thailand Bangkok

This is a filter conveyor that employs a high-rigidity sintered filter and handles chip processing for non-magnetic metals. It supports high-pressure pumps up to 3Mpa even without secondary treatment.Filtration accuracy: 20μm 90% or moreCompatible coolant: Water-solubleCompatible materials: Non-magn ...

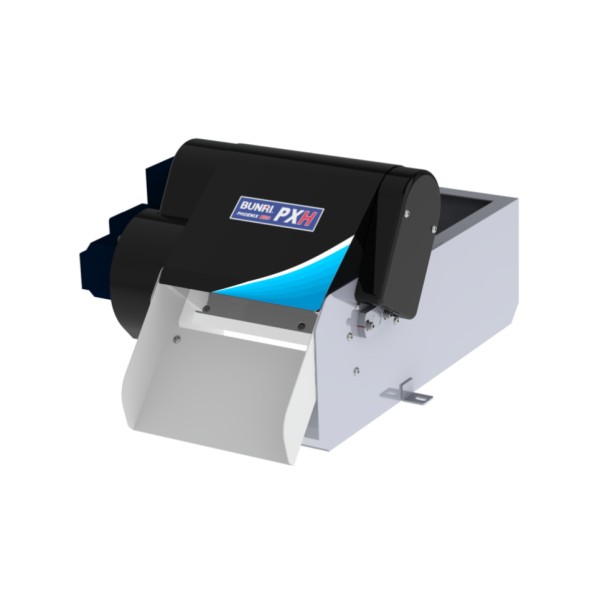

Magnet Separator Phoenix NEO PX Thailand Bangkok

A high-magnetic force magnet separator equipped with rare earth magnets, achieving stable separation performance. It adopts a new structure that prevents sprockets and chains from coming into contact with the coolant liquid, thereby preventing wear of the drive unit.A lineup of 4 types available to ...

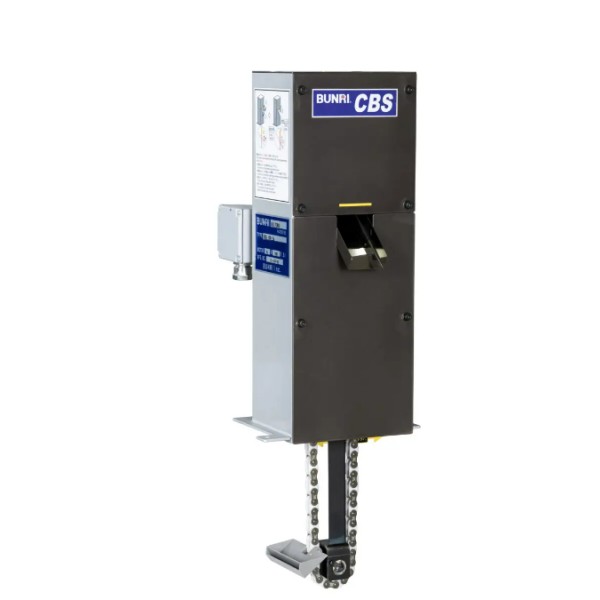

Chain Bucket Skimmer CBS Thailand Bangkok

A high-performance chain bucket oil skimmer that adopts a unique chain bucket method, possessing approximately 6 times the oil recovery capacity compared to the belt type. It can also handle high-temperature liquids and low-viscosity floating oil.・Recovery capacity: CBS-50 305cc/hr CBS-100 610cc/hr ...

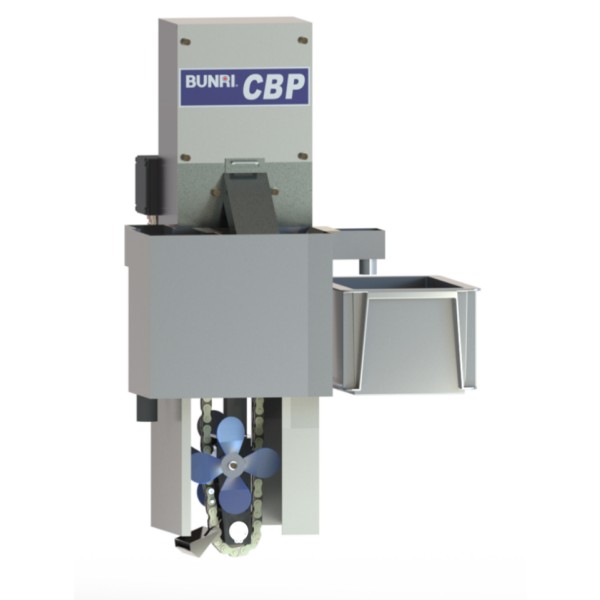

Chain Bucket Skimmer CBP Thailand Bangkok

A high-recovery chain bucket oil skimmer that achieves approximately 6 times the oil recovery capacity compared to general belt-type skimmers, thanks to its unique chain bucket system. A dedicated propeller controls the liquid flow on the tank surface, enhancing the recovery efficiency of floating o ...

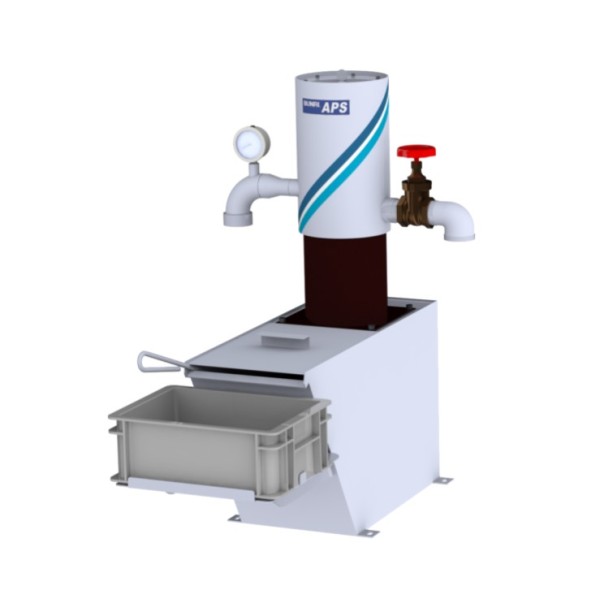

Cyclone Filter APS Thailand Bangkok

A cyclone filter equipped with a foaming prevention mechanism, adopting a special structure to suppress foaming of the clean fluid. The drain section, which is prone to wear from abrasive particles and hard chips, is designed for replaceable parts.・Filtration accuracy: 10μm, 90% or more・Compatible c ...

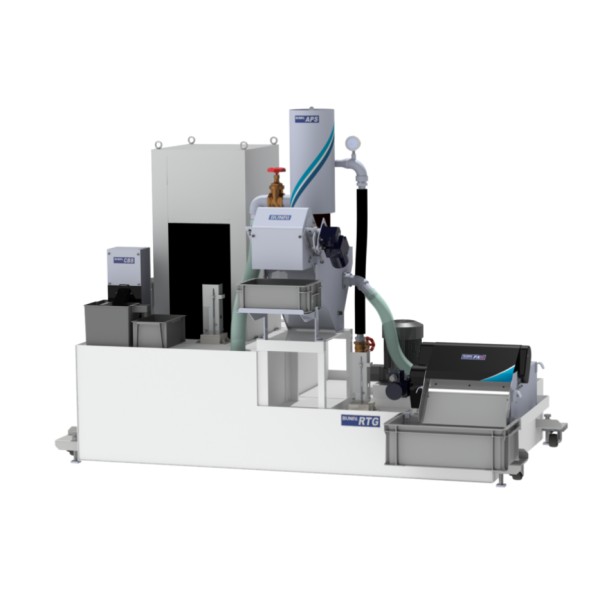

Grinding Coolant System for Drastic Cleaning Reduction RTG Thailand Bangkok

Filtration system for grinding processes, equipped with a newly designed magnet separator and cyclone filter, which suppresses the accumulation of chips inside the tank. With a uniquely structured tank, it suppresses the accumulation of chips inside the tank and significantly reduces cleaning effort ...

Ultra-strong Magnet Drum Conveyor M10_#30 Thailand Bangkok

A custom-designed magnet drum conveyor optimized for #30 machining centers. It collects magnetic chips using a high-magnetic-force magnet drum, allowing a 3Mpa high-pressure pump to be used even without secondary processing.・Filtration accuracy: 10μm 90% or more・Compatible coolant: Water-soluble・Com ...

Powerful Magnet Drum Conveyor MMS Thailand Bangkok

A magnet drum conveyor that adopts a high-magnetic-force magnet drum in the filtration section to efficiently recover magnetic cutting chips. Ideal for stable operation in cutting process lines.・Filtration accuracy: 20μm 90% or more・Compatible coolant: Water-soluble・Compatible materials: Magnetic ma ...

Powerful Magnet Conveyor HMS Thailand Bangkok

A low-profile conveyor that achieves filtration by installing powerful magnets on its bottom surface. Designed with a reduced main frame height, it can be installed even in low-profile machine openings.Suitable for processing magnetic chips.・Filtration accuracy: 30μm 90% or more・Compatible coolant: ...

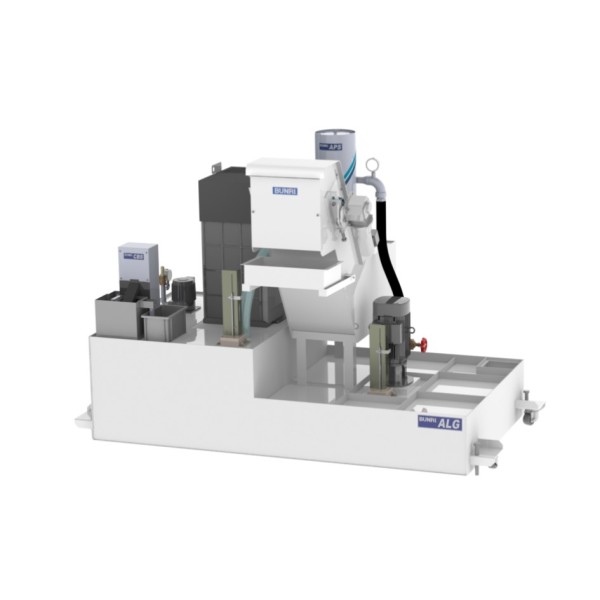

Coolant System ALG for Drastically Reduced Grinding Cleaning Thailand Bangkok

Grinding system equipped with a new cyclone filter, which suppresses chip accumulation with a uniquely designed tank. Significantly reduces cleaning frequency.・Filtration accuracy: 10μm 90% or more・Compatible coolant: Water-soluble・Compatible material: Non-magnetic materials・Compatible process: Grin ...

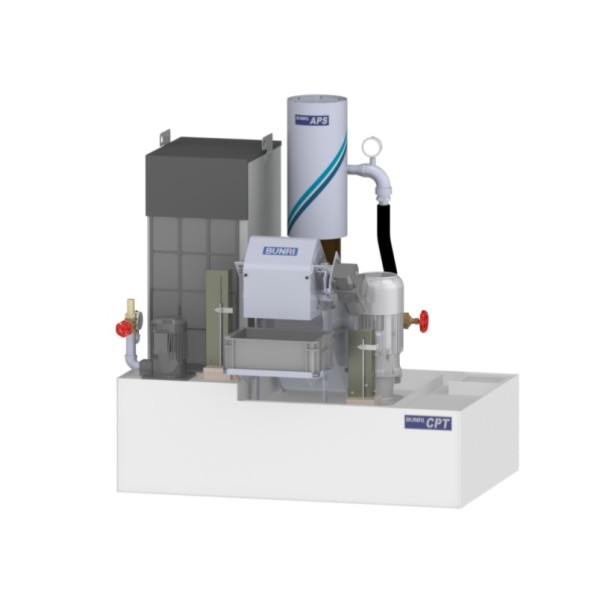

Compact CPT Grinding Coolant System for Drastically Reduced Cleaning, Thailand Bangkok

A grinding system equipped with a new cyclone filter that suppresses chip accumulation through its unique tank design. Installation space has been reduced by approximately 60% compared to conventional products (ALG).・Filtration accuracy: 10μm 90% or more・Compatible coolant: Water-soluble・Compatible ...

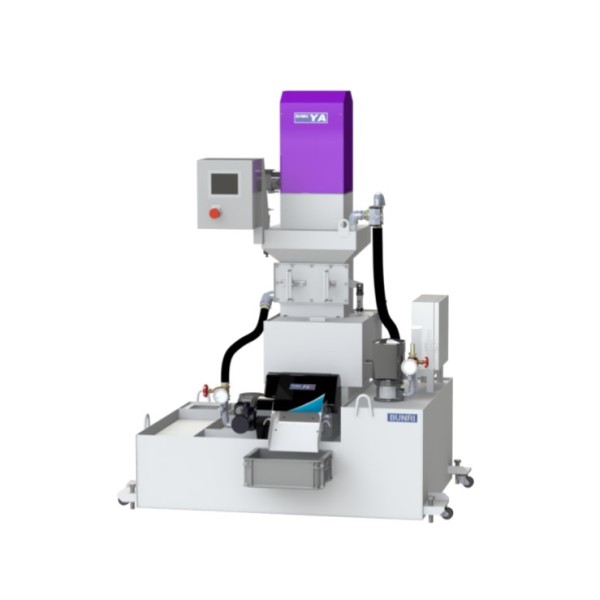

Ultra-precision Filtration Coolant System SB Filter YA Thailand Bangkok

An ultra-precision filtration system that performs filtration and filter media cleaning by magnetizing and demagnetizing steel balls, using steel ball filter media. Ideal for high-precision filtration in precision machining, such as honing machines and superfinishing machines.・Filtration accuracy: 5 ...

Magnet Roller Conveyor RC Thailand Bangkok

A roller conveyor equipped with a magnetic drum that performs filtration and chip conveyance simultaneously. It can also be used as a conveying device for workpieces and scrap.・Filtration accuracy: 80μm 90% or more・Compatible coolant: Water-soluble / Oil-based・Compatible material: Magnetic materials ...

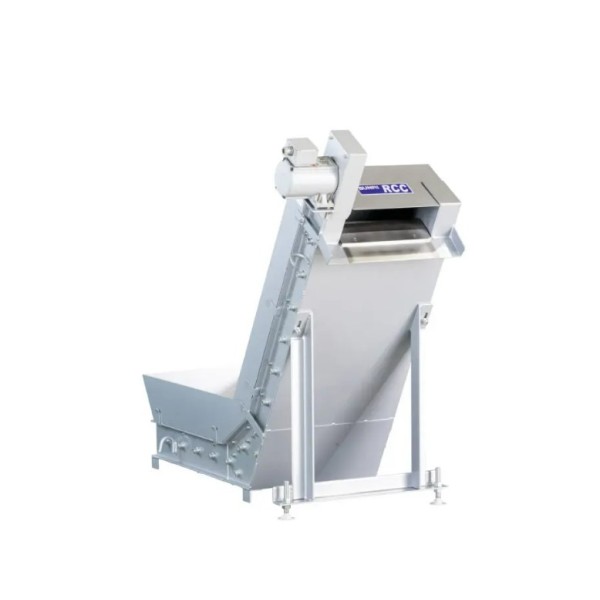

Powerful Magnet Roller Conveyor RCC Thailand Bangkok

A powerful magnetic roller conveyor that achieves both filtration and chip conveyance in a single unit. It handles various chip shapes.・Filtration accuracy: 50μm 90% or more・Compatible coolant: Water-soluble, oil-based・Compatible materials: Magnetic materials・Compatible processing: Cutting▼For other ...

Magnet Screw Conveyor SC Thailand Bangkok

A magnet-equipped screw conveyor with covered rotating parts for safe operation. It also functions as a conveying device for workpieces and other materials.・Filtration accuracy: 20mm, 90% or more・Compatible coolant types: Water-soluble and oil-based・Compatible materials: Magnetic materials・Compatibl ...

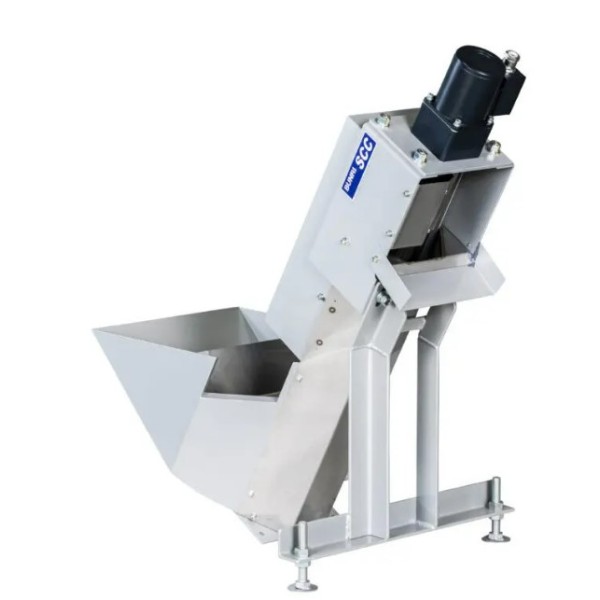

Powerful Magnet Screw Conveyor SCC Thailand Bangkok

A magnet-equipped screw conveyor with no exposed rotating parts, eliminating risks such as pinching and entanglement. Suitable for cutting chip processing from gear hobbing machines and broaching machines.・Filtration accuracy: 80μm 90% or more・Compatible coolant: Water-soluble and oil-based・Compatib ...

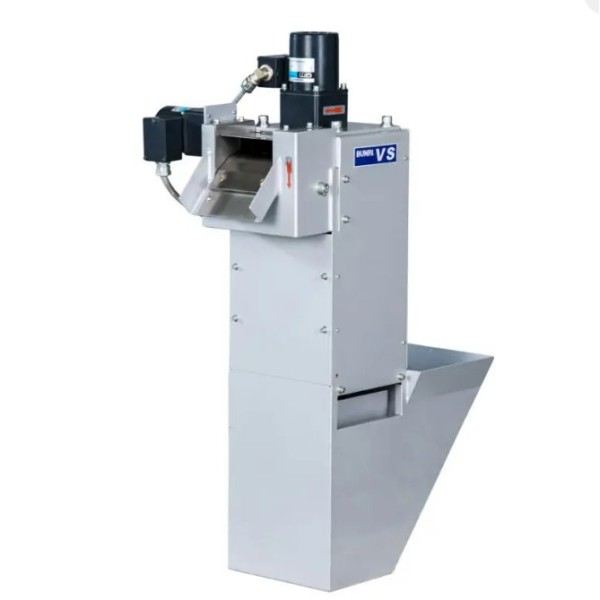

Powerful Vertical Magnet Screw Conveyor VS Bangkok, Thailand

Space-saving type magnet-equipped screw conveyor. It has the same capacity as SCC and is equipped with an auxiliary mechanism as standard to support chip transport and discharge.・Filtration accuracy: 80μm 90% or more・Compatible coolant: Water-soluble and oil-based・Compatible materials: Magnetic mate ...

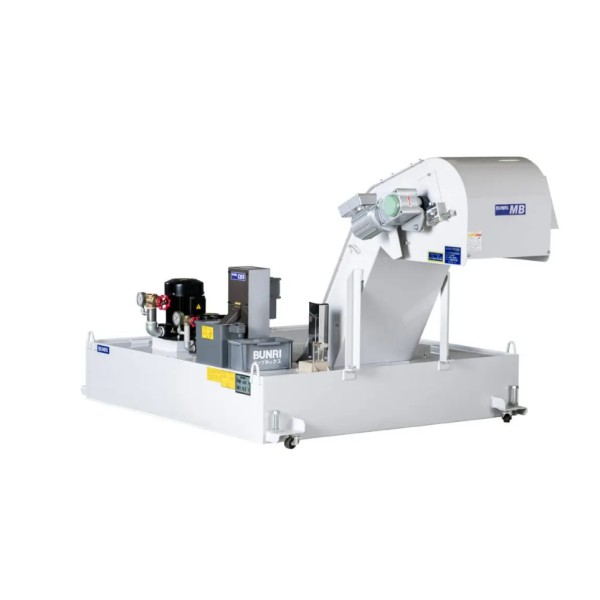

Magnet Belt Conveyor MB Thailand Bangkok

A belt conveyor equipped with magnetic filter media that captures chips with internal magnets. It is suitable for processing magnetic chips that tend to tangle, such as curled or clumped chips.・Filtration accuracy: 100μm 90% or more・Compatible coolant: Water-soluble / Oil-based・Compatible materials: ...

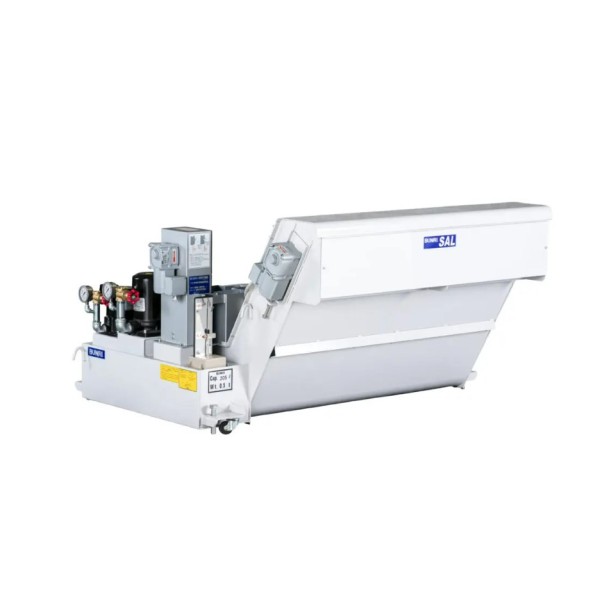

Rolling Filter Conveyor SAL Thailand Bangkok

A system equipped with a punching filter and a scraper conveyor. The punching filter filters fine chips, and chips that pass through are settled and collected by the scraper conveyor section.・Filtration accuracy: 200μm 90% or more・Compatible coolant: Water-soluble, oil-based・Compatible materials: No ...
