Filter-Type Oil Mist Collector | For Water-Soluble Cutting Fluids and Cutting Oils | Replacement & Custom Filters

Hose Master (Thailand) / Hoooseman is the authorized distributor of TINME oil mist collectors in Thailand, providing product sales, model selection, and technical support.

TINME is an oil mist collector brand for machine tools, developed and manufactured in Guangdong, China. Its product range covers applications from water-soluble cutting fluids to non-water-soluble cutting oils, allowing users to select a suitable model based on the type of fluid and the condition of the oil mist generated.

In addition to complete oil mist collector units, Hose Master (Thailand) also supplies replacement filters and custom-made filters based on required dimensions and specifications.

Table of Contents

• Features of Filter-Type Oil Mist Collectors
• Four Series for Different Applications
• Installation Record in the Chinese Market
• Structure and Operating Principle
• Replacement and Custom Filters
• Air Purification Performance Test
• Sales and Technical Support in Thailand
• Frequently Asked Questions

Features of Filter-Type Oil Mist Collectors

During cutting and grinding processes, cutting fluids and cutting oils can become fine oil mist and spread around machine tools. Oil mist collectors draw in and capture this mist from inside the machine, helping reduce airborne dispersion and oil deposits on floors and equipment.

TINME filter-type oil mist collectors combine primary centrifugal separation with multi-layer filtration. Models are available for a wide range of applications, from general machining with water-soluble cutting fluids to non-water-soluble cutting oils, fine oil mist, oil smoke, and high-concentration oil fumes.

Four Series for Different Applications

TINME offers four oil mist collector series—TM, TM-P, TM-A, and TM-A+—to suit different oil mist conditions and machining requirements.

Model selection is based on factors such as the cutting fluid or oil used, machine type, machining conditions, mist volume, required airflow, and available installation space.

For detailed specifications including model numbers, airflow, power output, and unit dimensions, please refer to the attached product catalog.

Installation Record in the Chinese Market

TINME oil mist collectors have been installed on a large number of machine tools, particularly in China. As of 2025, 50,000 units had been sold in the Chinese market. The products have also been adopted by machine tool distributors as bundled equipment for Japanese machine tools.

They can be installed on various types of machine tools, including lathes, sliding-headstock automatic lathes, machining centers, and grinding machines.

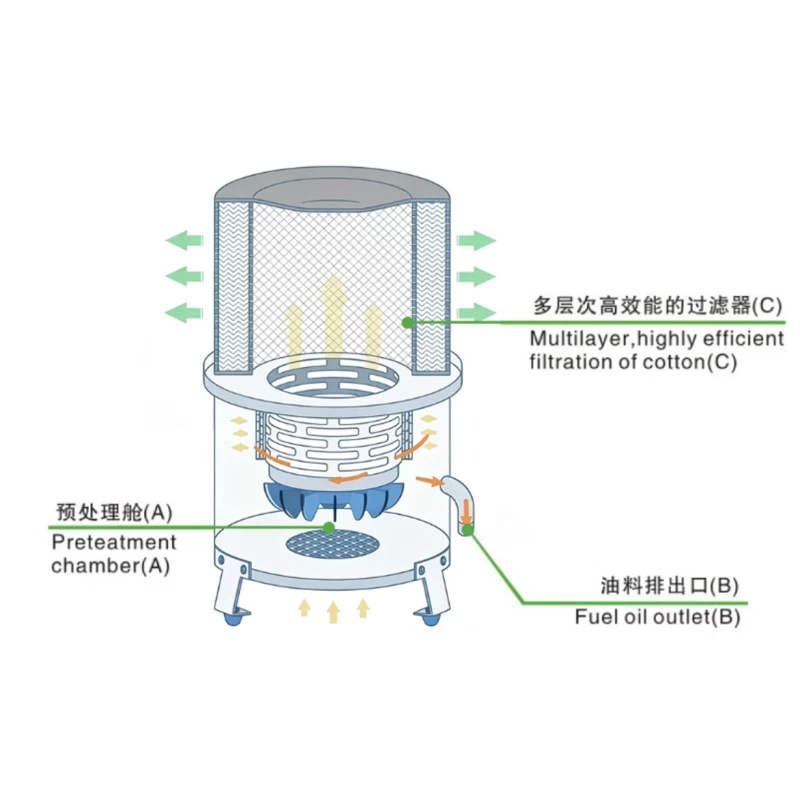

Structure and Operating Principle

Oil mist generated inside the machine tool is drawn into the collector, where high-speed turbine blades agglomerate and separate the mist particles.

After primary separation, the air passes through multiple filter layers to capture remaining fine particles before being discharged from the unit. The separated cutting fluid or cutting oil is discharged as liquid and, depending on operating conditions, can be returned to the machine tool for reuse.

Filter configurations for particles as small as 0.3 µm are also available.

The unit is designed for top access, making filter cleaning and replacement easier.

Replacement and Custom Filters

Hose Master (Thailand) supplies not only complete oil mist collectors, but also replacement filters.

In addition to standard replacement filters, custom filters can be manufactured to match the dimensions and specifications of existing equipment. If you are considering replacing an existing filter or require a size or specification not covered by standard products, custom production can be discussed.

Filter replacement intervals vary depending on operating hours, machining conditions, and oil mist concentration. If suction performance decreases or the filter becomes visibly dirty, inspection, cleaning, or replacement should be considered.

Air Purification Performance Test

In a test using a Tsugami B0205-III Swiss-type automatic lathe, PM2.5 concentration was reduced from 692 µg/m³ before filtration to 4 µg/m³ after filtration, achieving an improvement rate of 99.4%.

※ These results were obtained under specific machine and operating conditions. Actual performance may vary depending on the type of mist, machining conditions, machine model, and installation environment.

Sales and Technical Support in Thailand

Hose Master (Thailand) is a Thai-Chinese joint venture and the authorized distributor of TINME oil mist collectors in Thailand, providing support from product sales through after-sales service.

On-Site Survey and Model Selection

Staff can visit the customer’s factory to inspect the machine tools, available installation space, cutting fluids or oils used, and oil mist conditions before recommending a suitable model and specification.

For customers who are unsure which series to select or what airflow is required, the appropriate unit can be selected based on the actual operating environment.

Supports 100 V / 200 V / 220 V / 380 V

Voltage specifications of 100 V, 200 V, 220 V, and 380 V are available depending on the equipment and operating environment.

※ Available voltage options vary by model and specification. Please contact us for details.

Support in Japanese, Thai, English, and Chinese

Hose Master (Thailand) has Japanese staff on-site and can provide support in Japanese, Thai, English, and Chinese.

Customers in Thailand are welcome to consult us regarding model selection, installation, replacement filters, and custom filter requirements.

Frequently Asked Questions

Q1. Can the system handle both water-soluble cutting fluids and cutting oils?
A. Yes. The TM Series is designed for water-soluble cutting fluids, while other series are available for non-water-soluble cutting oils, fine oil mist, oil smoke, and high-concentration oil fumes.

Q2. Which oil mist collector should I choose?
A. The suitable model depends on factors such as the cutting fluid or oil used, machine type, machining conditions, mist volume, required airflow, and installation space. A model can be recommended after reviewing the actual operating environment.

Q3. Can you provide an on-site survey in Thailand?
A. Yes. Staff can visit your factory to inspect the machine tools, installation conditions, and oil mist generation.

Q4. Can I purchase replacement filters only?
A. Yes. Replacement filters are available separately from the oil mist collector unit. If you provide the filter model number or the model number of the oil mist collector currently in use, a suitable proposal and quotation can be prepared.

Q5. Can you manufacture custom-sized filters?
A. Yes. Custom filters can be produced according to the dimensions and specifications of your equipment.

Q6. Can the system be used with 100 V or 200 V equipment?
A. Depending on the model and specification, 100 V, 200 V, 220 V, and 380 V are available. Please confirm your equipment specifications and contact us for details.

※ Product specifications, collection efficiency, and suitable filter configurations may vary depending on machining conditions, the type of mist, and the operating environment.

※ For detailed model numbers, airflow, dimensions, and other specifications, please download and review the attached catalog. For product selection, replacement filters, or custom filters, please contact us through the inquiry form at the bottom of the page.
