DTY-ELG41 Ionizer Air Gun — Convertible Straight and Air Gun Configurations / Greater Flexibility for On-Site Applications

KOGANEI (THAILAND) CO., LTD. introduces the DTY-ELG41 Ionizer Air Gun, designed to help eliminate static electricity and blow dust off workpieces. It is suitable for applications that require flexibility in both installation and operation.

The DTY-ELG41 can be configured in either a straight shape or an air gun shape, allowing users to select the most suitable form according to the available space and preferred handling position. Its all-in-one construction integrates the valve and ion generation unit into the main body, making installation simple, operation convenient, and the workspace more organized.

Table of Contents

• Key Features of the DTY-ELG41 Ionizer Air Gun
• Pulse Blow for Increased Blowing Force and Reduced Compressed Air Consumption
• Specifications and Operating Performance
• Construction and Design for Continuous Use
• Frequently Asked Questions (FAQ)

Key Features of the DTY-ELG41 Ionizer Air Gun

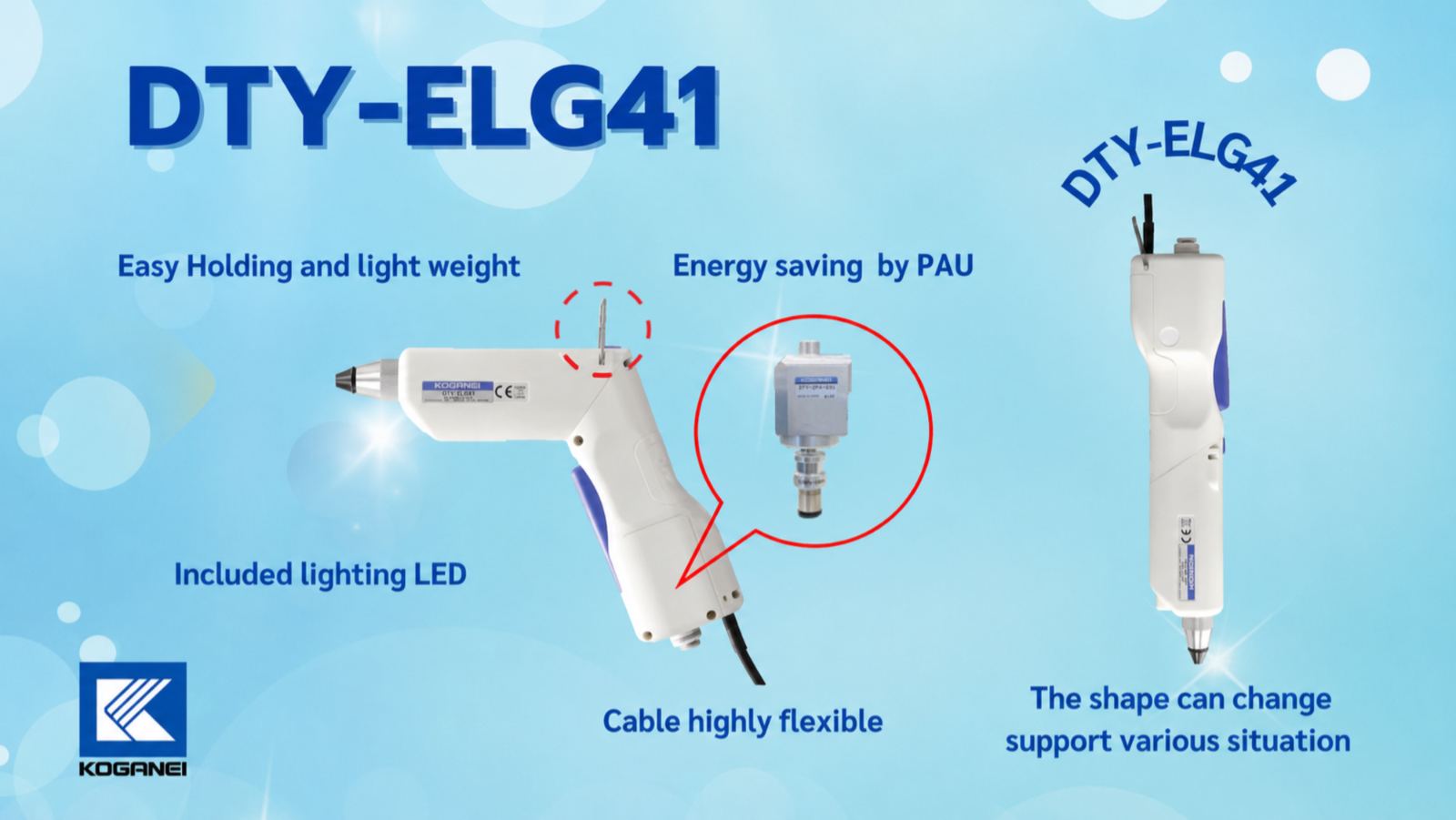

• Convertible between straight and air gun configurations
  The straight configuration is suitable for narrow spaces or suspended installations, while the air gun configuration is ideal for general handheld applications, providing greater flexibility in the workplace.
• Lightweight design helps reduce operator fatigue
  The standard model weighs only 185 g, excluding the power cable, and is 10% lighter than the previous model, helping reduce fatigue during continuous operation.
• Easy installation with an all-in-one construction
  The valve and ion generation unit are integrated into the main body, eliminating the need for a separate external controller. This saves space and reduces installation complexity.
• LED light makes dust inspection easier
  An LED light is included as standard equipment, helping users see dust and contaminants on workpieces more clearly. Three operating modes are available: continuously on, off, or synchronized with the trigger operation.

Pulse Blow for Increased Blowing Force and Reduced Compressed Air Consumption

The DTY-ELG41-PAU model is equipped with a built-in Pulse Blow Unit, which generates intermittent air pulses to help remove dust from workpiece surfaces more effectively. The pulse frequency can be adjusted from 5 to 15 Hz.

The Pulse Blow function also helps reduce compressed air consumption compared with continuous air blowing. This reduces the load on the air compressor and supports energy-saving initiatives in manufacturing facilities.

※ For more details, please download the PDF attached to this article or complete the inquiry form below.

Specifications and Operating Performance

Construction Designed for Continuous Use

• Highly flexible connection cable
  The cable is designed to withstand frequent bending, twisting, and movement, helping reduce the risk of internal wire breakage.
• Convenient on-unit settings
  The unit is equipped with switches for adjusting various functions, as well as a power cable connector that allows for quick installation and maintenance.

Frequently Asked Questions (FAQ)

Q: Is it difficult to change the unit from the straight configuration to the air gun configuration?
A: No. The configuration can be changed easily by pressing and holding the lock button while rotating the main body. Rotate it clockwise to change to the straight configuration, and rotate it counterclockwise to return to the air gun configuration.

Q: Can a general-purpose power supply be connected directly to the unit?
A: The unit requires a power supply of 24 VDC ±5%. For stable operation and optimum performance, it is recommended to use the KOGANEI DTY-ZPS-G31 AC Adapter.

Interested in the DTY-ELG41 Ionizer Air Gun?

For applications that require reduced static electricity, less dust adhesion on workpieces, and greater flexibility for both handheld operation and installation in confined spaces, please download the PDF attached to this article or complete the inquiry form below to request more information from KOGANEI (THAILAND) CO., LTD.
